PBSS4230PANP,115 - Nexperia

Description: Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 30V 2A 120MHz 510mW Surface Mount 6-HUSON (2x2)

Download PBSS4230PANP,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

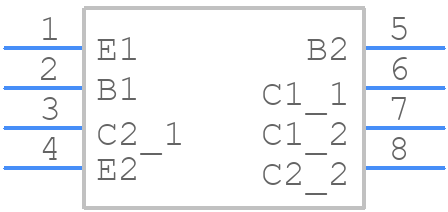

Symbol
PBSS4230PANP,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PBSS4230PANP,115 - Nexperia PCB footprint - Other - Other - PBSS4230PANP,115-2
click to zoom
3D Models
PBSS4230PANP,115 - Nexperia - 3D model - Other - PBSS4230PANP,115-2
click to zoom

PBSS4230PANP,115 Details

  • Manufacturer Part Number:

    PBSS4230PANP,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN2020-6, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT1118

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    2 A

  • Collector-Emitter Voltage-Max:

    30 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    150

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    120 MHz

PBSS4230PANP,115 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for PBSS4230PANP,115 is a SOA (Small Outline Automotive) package with a minimum pad size of 1.3 mm x 1.3 mm and a recommended solder stencil opening of 0.8 mm x 0.8 mm.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range of -40°C to 150°C.
  • The maximum allowed voltage on the input pins of PBSS4230PANP,115 is 5.5 V, which is the absolute maximum rating. However, for normal operation, the recommended input voltage range is 3.0 V to 5.0 V.
  • Yes, PBSS4230PANP,115 can be used in a 3.3 V system. The device is compatible with 3.3 V logic levels and can operate with a supply voltage as low as 3.0 V.
  • To handle ESD protection when working with PBSS4230PANP,115, follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, or ESD-safe storage containers. The device itself has built-in ESD protection, but external precautions are still necessary to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBSS4230PANP,115 Overview

Use the download button to access the PBSS4230PANP,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBSS4, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
