The recommended power-up sequence is to first apply the supply voltage (VCC) and then the input voltage (VIN). This ensures proper initialization of the internal circuitry.
To minimize the effects of noise, use a low-pass filter with a cutoff frequency of around 1 kHz to 10 kHz, depending on the specific application requirements. Additionally, consider using a shielded cable and grounding the sensor's housing to reduce electromagnetic interference.
While the datasheet specifies a range of 0 to 50 bar, the sensor can actually measure pressures up to 70 bar, but with reduced accuracy. However, it's essential to note that exceeding the recommended range may lead to sensor damage or degradation.
Calibration involves applying a series of known pressures and recording the corresponding output voltages. Use a high-precision pressure source and a multimeter to measure the output voltage. Then, create a calibration curve or use a polynomial fit to determine the sensor's sensitivity and offset.
The response time of the PC50-7-TO8 is typically around 1 ms to 5 ms, depending on the specific application and the pressure range being measured. This is relatively fast compared to other pressure sensors in its class.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PC50-7-TO8 Overview

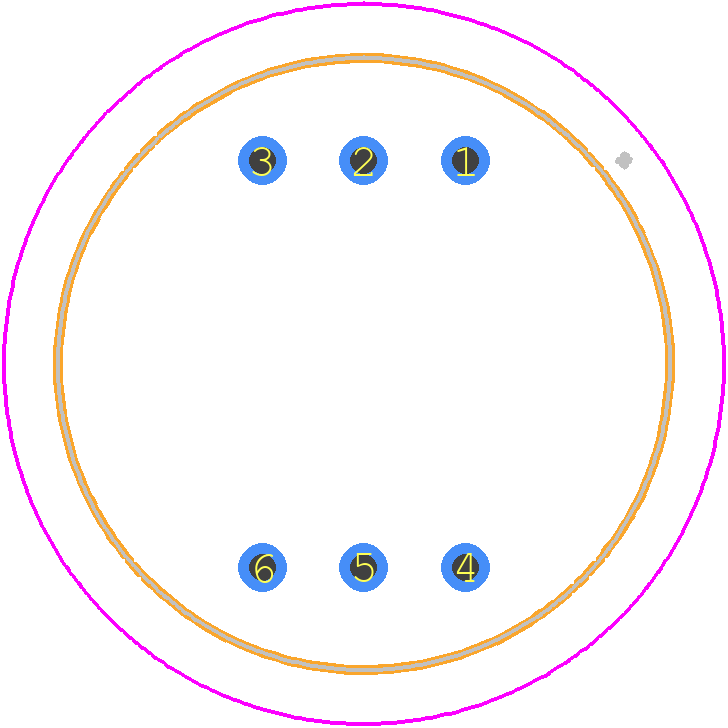

Use the download button to access the PC50-7-TO8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PC50-,
or try a keyword search, such as Photo Diodes
