PC8477BVF-1 - Texas Instruments

PC8477BVF-1 Details

• Manufacturer Part Number:

  PC8477BVF-1

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

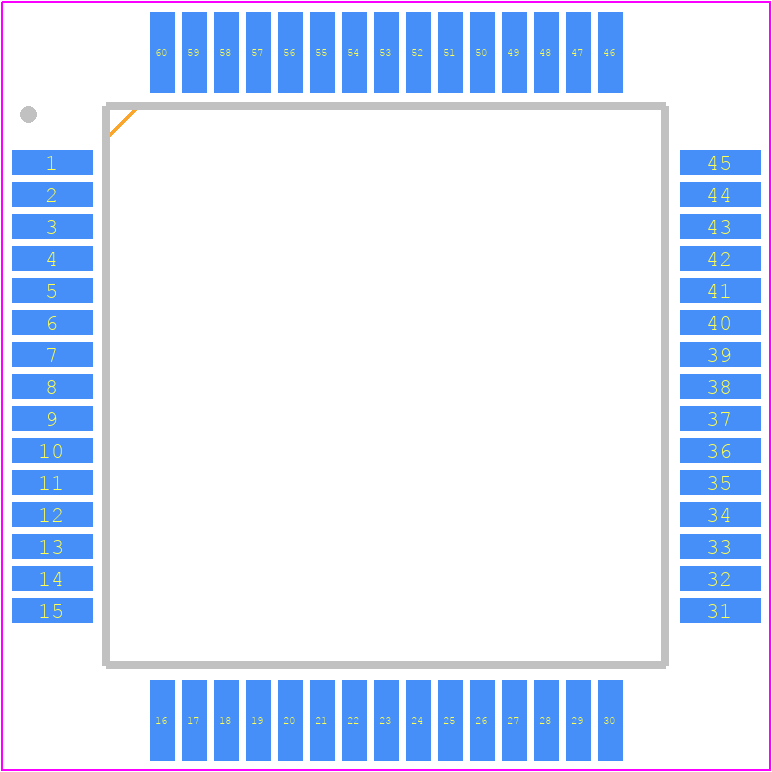

• Package Description:

  QFP, QFP60,.75SQ,32

• Reach Compliance Code:

  Unknown

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Data Transfer Rate-Max:

  0.125 MBps

• External Data Bus Width:

  8

• Host Interface Standard:

  PC-AT; PS/2; EISA

• JESD-30 Code:

  S-PQFP-G60

• JESD-609 Code:

  e0

• Number of Terminals:

  60

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP60,.75SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  15 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• uPs/uCs/Peripheral ICs Type:

  SECONDARY STORAGE CONTROLLER, FLOPPY DISK DRIVE
