Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the decoupling capacitors are placed close to the device.
The output capacitor value depends on the specific application and desired performance. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the output voltage. A higher capacitance value can improve output stability, but may increase the startup time.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
The PCA6107DWR is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management in high-temperature environments. Ensure that the device is properly heatsinked and that the PCB design takes into account thermal expansion and contraction.
To troubleshoot issues, start by verifying the PCB layout and component values. Check for noise coupling, decoupling capacitor values, and input/output impedance mismatches. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCA6107DWR Overview

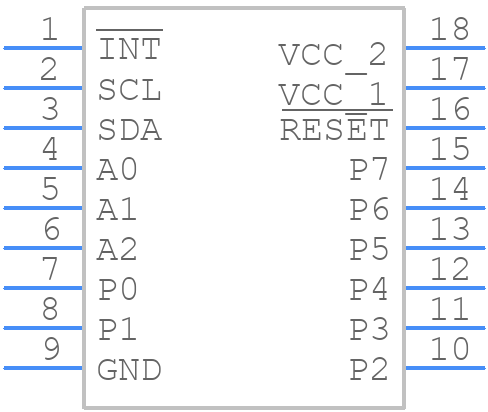

Use the download button to access the PCA6107DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA61,
or try a keyword search, such as Parallel IO Ports
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
