A good PCB layout for the PCA9306AMUTCG involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the connector. Additionally, using a common mode choke or ferrite bead can help reduce EMI.
To ensure proper biasing, connect the VCC pin to a stable 1.8V to 5.5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input and output voltage levels are within the recommended range.
The PCA9306AMUTCG can support cable lengths up to 10 meters (33 feet) at data rates up to 100 Mbps, but this can vary depending on the specific application and cable quality.
To troubleshoot issues, use an oscilloscope to check the signal integrity, verify the power supply voltage and decoupling, and ensure the input and output voltage levels are within the recommended range. Also, check for any signal reflections or ringing.
Yes, the PCA9306AMUTCG is designed to support hot-swap and hot-plug applications, but ensure that the power supply is properly sequenced and the device is properly biased during power-up and power-down.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCA9306AMUTCG Overview

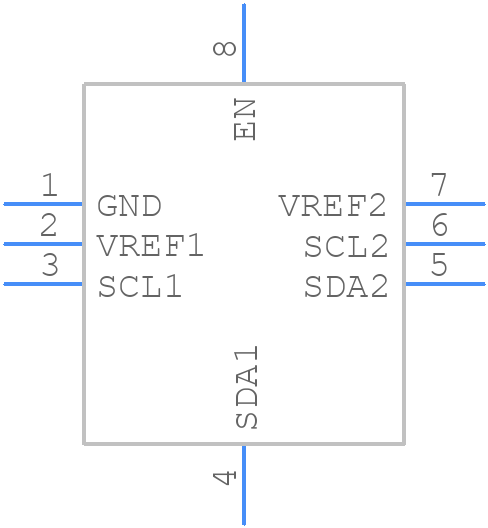

Use the download button to access the PCA9306AMUTCG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA93,
or try a keyword search, such as Level Translators
