The maximum frequency of operation for the PCA9515ADGKRG4 is 400 kHz, as specified in the datasheet. However, it's recommended to operate at a lower frequency to ensure reliable operation and to minimize power consumption.
To handle hot-swapping with the PCA9515ADGKRG4, you should use an external voltage supervisor to detect the presence of the VCC supply and ensure that the device is fully powered up before enabling the I2C bus. Additionally, you should use a pull-up resistor on the SCL line to prevent it from floating when the device is not present.
For optimal performance, it's recommended to follow a star topology for the I2C bus, with the PCA9515ADGKRG4 at the center. Keep the I2C bus lines as short as possible and avoid routing them near noise sources or high-frequency signals. Use a solid ground plane and decouple the VCC pin with a 0.1 uF capacitor.
To troubleshoot I2C bus issues with the PCA9515ADGKRG4, use a logic analyzer or oscilloscope to monitor the SCL and SDA lines. Check for proper signal levels, rise times, and fall times. Verify that the I2C bus is not being driven by multiple masters simultaneously, and ensure that the slave devices are properly addressed and responding to commands.
The PCA9515ADGKRG4 is designed to operate with 1.8V to 3.6V logic levels, but it can be used with 3.3V or 5V logic levels with proper level shifting. Use a level translator or voltage divider to ensure that the I2C bus signals are within the recommended voltage range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCA9515ADGKRG4 Overview

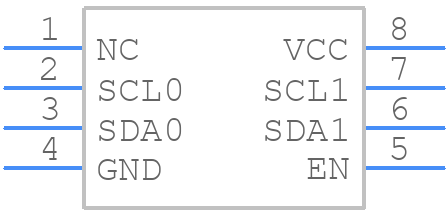

Use the download button to access the PCA9515ADGKRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95,
or try a keyword search, such as Other Interface ICs
