Part Image

PCA9518DBQR - Texas Instruments

Description: Expandable Five-Channel I2C Hub

Download PCA9518DBQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

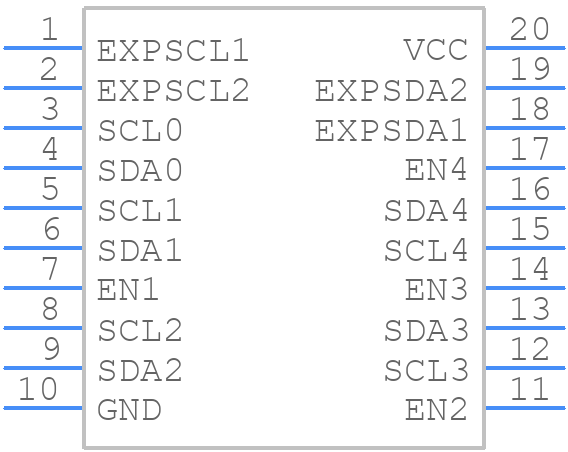

Symbol
PCA9518DBQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCA9518DBQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G20)
click to zoom
3D Models
PCA9518DBQR - Texas Instruments - 3D model - Small Outline Packages - DBQ (R-PDSO-G20)
click to zoom

PCA9518DBQR Details

  • Manufacturer Part Number:

    PCA9518DBQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PCA9518DBQR Frequently Asked Questions (FAQs)

  • The PCA9518DBQR can support I2C bus frequencies up to 1 MHz, but it's recommended to operate at 400 kHz or lower for reliable operation.
  • To configure the PCA9518DBQR for bidirectional voltage translation, connect the VCC pin to the higher voltage supply, and the VREF pin to the lower voltage supply. Then, connect the SCL/SDA pins to the corresponding I2C bus signals.
  • The PCA9518DBQR can sink or source up to 20 mA of current on the I2C bus, making it suitable for driving long cables or multiple devices.
  • To ensure reliable operation in a noisy environment, use a bypass capacitor (e.g., 0.1 uF) between the VCC and GND pins, and consider adding a series resistor (e.g., 1 kΩ) on the SCL and SDA lines to reduce noise coupling.
  • Yes, the PCA9518DBQR can be used for level shifting between 1.8V and 5V. However, ensure that the VREF pin is connected to the 1.8V supply, and the VCC pin is connected to the 5V supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9518DBQR Overview

Use the download button to access the PCA9518DBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
