- Part Number PCA9527DPZ
- Manufacturer NXP
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PCA9527-0
- Released Date Apr 21, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PCA9527DPZ Details
-
Manufacturer Part Number:
PCA9527DPZ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Country Of Origin:
Mainland China
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
1
-
Consumer IC Type:
CONSUMER CIRCUIT
-
Moisture Sensitivity Level:
1
-
Peak Reflow Temperature (Cel):
260
PCA9527DPZ Frequently Asked Questions (FAQs)
-
The PCA9527DPZ can operate up to 400 kHz, but the maximum frequency of operation depends on the specific application and the capacitive load of the bus.
-
The PCA9527DPZ can be configured for I2C or SMBus operation by setting the appropriate pins high or low. For I2C operation, pin 15 (SCL) should be connected to VCC, and for SMBus operation, pin 15 should be connected to GND.
-
The PCA9527DPZ can drive up to 4000 pF of bus capacitance, but the actual capacitance limit depends on the specific application and the frequency of operation.
-
The PCA9527DPZ has built-in hot-swapping capability, but it's recommended to use external circuitry to ensure safe insertion and removal of devices on the bus.
-
The PCA9527DPZ has a built-in POR circuit that resets the device after power-on. The POR timing is typically around 1 ms, but it can vary depending on the specific application and power supply characteristics.
Trust Checks
Community Provided
System Verified
Community Approved
PCA9527DPZ Overview

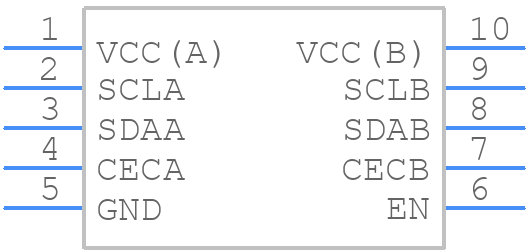

Use the download button to access the PCA9527DPZ schematic symbol, PCB footprint, and 3D model.
