PCA9535ECDWR2G - onsemi

Description: 16-bit Low-Power I/O Expander for I2C Bus with Interrupt

Download PCA9535ECDWR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

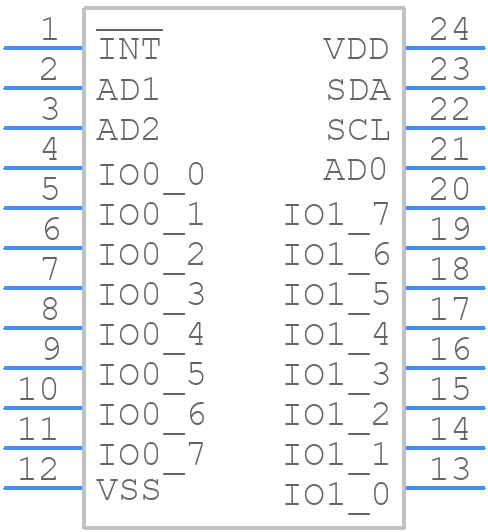

PCA9535ECDWR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
PCA9535ECDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-24 CASE 751E-04 ISSUE E
click to zoom
3D Models
PCA9535ECDWR2G - onsemi - 3D model - Small Outline Packages - SOIC-24 CASE 751E-04 ISSUE E
click to zoom

PCA9535ECDWR2G Details

  • Manufacturer Part Number:

    PCA9535ECDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC−24 WB

  • Pin Count:

    24

  • Manufacturer Package Code:

    0.0751

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.395 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

PCA9535ECDWR2G Frequently Asked Questions (FAQs)

  • The PCA9535ECDWR2G can support I2C bus frequencies up to 400 kHz, but it is recommended to operate at 100 kHz or lower for reliable operation.
  • The PCA9535ECDWR2G has an internal power-on reset (POR) circuit that resets the device after power-up. However, it is recommended to add an external reset circuit to ensure a clean reset signal, especially in noisy power supply environments.
  • Yes, the PCA9535ECDWR2G can be used as a level translator between 3.3V and 5V logic levels. The device is designed to operate with a wide range of supply voltages (1.65V to 5.5V) and can translate logic levels between these voltage ranges.
  • When multiple PCA9535ECDWR2G devices are connected to the same I2C bus, each device must have a unique address. This can be achieved by connecting the A0, A1, and A2 pins to different logic levels to set the device address. Additionally, it is recommended to use a bus buffer or repeater to improve signal integrity and reduce bus loading.
  • The PCA9535ECDWR2G's GPIO pins can source or sink up to 25mA of current. However, it is recommended to limit the current to 10mA or less to ensure reliable operation and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9535ECDWR2G Overview

Use the download button to access the PCA9535ECDWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95, or try a keyword search, such as Parallel IO Ports
