PCA9540BGD,125 - NXP

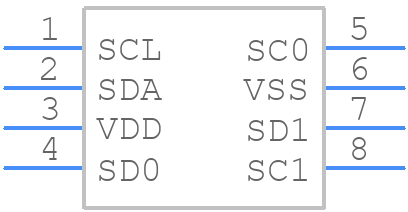

PCA9540BGD,125 Details

• Manufacturer Part Number:

  PCA9540BGD,125

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SON

• Package Description:

  3 X 2 MM, 0.50 MM HEIGHT, PLASTIC, SOT996-2, XSON-8

• Pin Count:

  8

• Manufacturer Package Code:

  SOT996-2

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES WITH 3.6 TO 5.5V SUPPLY

• Family:

  9540

• JESD-30 Code:

  R-PDSO-N8

• Length:

  3 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  MULTIPLEXER

• Max I(ol):

  0.006 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Inputs:

  2

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  XSON

• Package Equivalence Code:

  SOLCC8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, EXTREMELY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.1 mA

• Prop. Delay@Nom-Sup:

  0.3 ns

• Propagation Delay (tpd):

  0.3 ns

• Seated Height-Max:

  0.5 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
