PCA9542AD,112 - NXP

Description: Encoders, Decoders, Multiplexers & Demultiplexers 2-CH I2C MUX

Download PCA9542AD,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

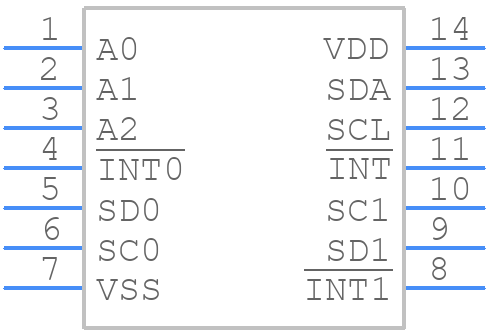

Symbol
PCA9542AD,112 - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9542AD,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT108-1 (SO14)
click to zoom
3D Models
PCA9542AD,112 - NXP - 3D model - Small Outline Packages - SOT108-1 (SO14)
click to zoom

PCA9542AD,112 Details

  • Manufacturer Part Number:

    PCA9542AD,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • On-state Resistance-Max (Ron):

    55 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

PCA9542AD,112 Frequently Asked Questions (FAQs)

  • The PCA9542AD,112 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit the frequency to 100 kHz for reliable operation.
  • Yes, the PCA9542AD,112 can switch between multiple I2C buses with different voltage levels, but the voltage on the SCL and SDA pins must be within the specified range of 1.8 V to 5.5 V.
  • To ensure correct switching, you need to send the correct control byte to the PCA9542AD,112, which includes the channel selection and the enable/disable bit. You can find the control byte format in the datasheet.
  • The PCA9542AD,112 can drive I2C buses with a maximum capacitance of 400 pF. Exceeding this limit may affect the signal integrity and reliability.
  • Yes, the PCA9542AD,112 can switch between I2C buses with different clock stretching requirements. The device will automatically adapt to the clock stretching requirements of the selected bus.
