PCA9543APW - Texas Instruments

Description: Texas Instruments PCA9543APW, Multiplexer Dual 2:1 Multiplexer, 2.3 → 5.5 V, 14-Pin TSSOP

Download PCA9543APW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

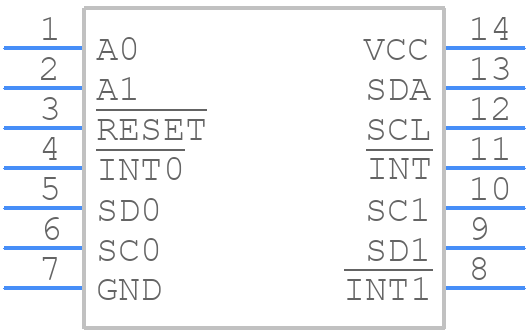

PCA9543APW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCA9543APW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
PCA9543APW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

PCA9543APW Details

  • Manufacturer Part Number:

    PCA9543APW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCA9543APW Frequently Asked Questions (FAQs)

  • The PCA9543APW can support I2C bus frequencies up to 400 kHz, but it's recommended to limit it to 100 kHz for reliable operation.
  • To configure the PCA9543APW in dual-bus mode, connect the SCL/SDA pins of the two buses to the corresponding pins on the PCA9543APW, and use the EN pin to enable or disable each bus. See the application note for detailed configuration and programming information.
  • The PCA9543APW can drive bus capacitances up to 400 pF, but it's recommended to keep the bus capacitance below 200 pF for reliable operation.
  • Yes, the PCA9543APW can be used to switch between multiple I2C masters, but it requires careful programming and synchronization to avoid bus conflicts and ensure reliable operation.
  • To handle hot-swapping of I2C devices with the PCA9543APW, use the EN pin to disable the bus before hot-swapping, and then re-enable the bus after the device is inserted or removed. This ensures that the bus is not disturbed during the hot-swap process.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9543APW Overview

Use the download button to access the PCA9543APW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95, or try a keyword search, such as Multiplexers or Switches
