PCA9543APWRG4 - Texas Instruments

Description: I2C Multiplexer 1-Element Open Drain 2-IN 14-Pin TSSOP T/R

Download PCA9543APWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

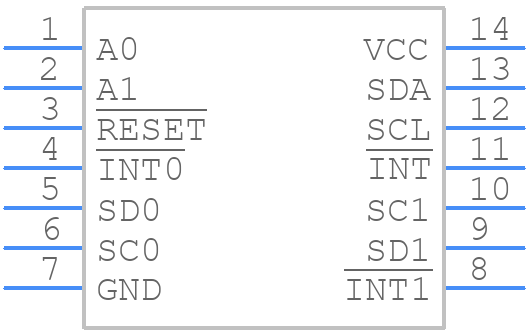

PCA9543APWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCA9543APWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
PCA9543APWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

PCA9543APWRG4 Details

  • Manufacturer Part Number:

    PCA9543APWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCA9543APWRG4 Frequently Asked Questions (FAQs)

  • The PCA9543APWRG4 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit the frequency to 100 kHz for reliable operation.
  • Yes, the PCA9543APWRG4 can be used as a level shifter for I2C signals, but it's not recommended as it's primarily designed as a bus expander. For level shifting, it's better to use a dedicated level shifter like the TXS0108.
  • To configure the PCA9543APWRG4 for use with multiple masters, you need to use the EN pin to enable or disable the bus expander. You can also use the INT pin to generate an interrupt when a master is trying to access the bus.
  • The PCA9543APWRG4 can support up to 8 downstream devices on each of its 4 channels, making a total of 32 devices that can be connected.
  • Yes, the PCA9543APWRG4 is 5V tolerant, but it's recommended to use it with 3.3V devices for reliable operation. If you need to use it with 5V devices, ensure that the voltage levels are within the recommended specifications.
