PCA9543BPW,118 - NXP

Description: NXP PCA9543BPW,118, Multiplexer Single 2:1, 14-Pin TSSOP

Download PCA9543BPW,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

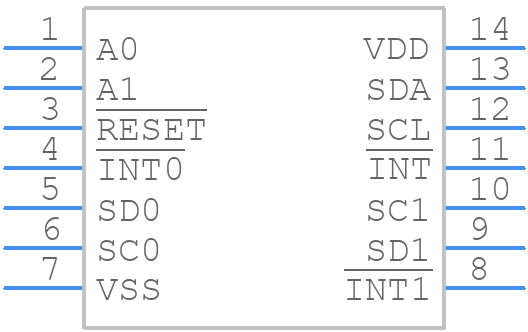

PCA9543BPW,118 - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9543BPW,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT402-1
click to zoom
3D Models
PCA9543BPW,118 - NXP - 3D model - Small Outline Packages - SOT402-1
click to zoom

PCA9543BPW,118 Details

  • Manufacturer Part Number:

    PCA9543BPW,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT402-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

PCA9543BPW,118 Frequently Asked Questions (FAQs)

  • The PCA9543BPW,118 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit the frequency to 100 kHz for reliable operation.
  • Yes, the PCA9543BPW,118 can switch between multiple I2C buses with different voltage levels, but the voltage on each bus must be within the recommended operating range of 1.8 V to 5.5 V.
  • To ensure correct switching, make sure to follow the recommended switching sequence and timing in the datasheet, and use the correct control signals (SCL and SDA) to select the desired bus.
  • Yes, the PCA9543BPW,118 can isolate I2C buses with different clock frequencies, but the clock frequency on each bus must be within the recommended operating range of 10 kHz to 400 kHz.
  • The PCA9543BPW,118 can drive I2C buses with a maximum capacitance of 400 pF, but it's recommended to limit the capacitance to 100 pF for reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9543BPW,118 Overview

Use the download button to access the PCA9543BPW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95, or try a keyword search, such as Multiplexers or Switches
