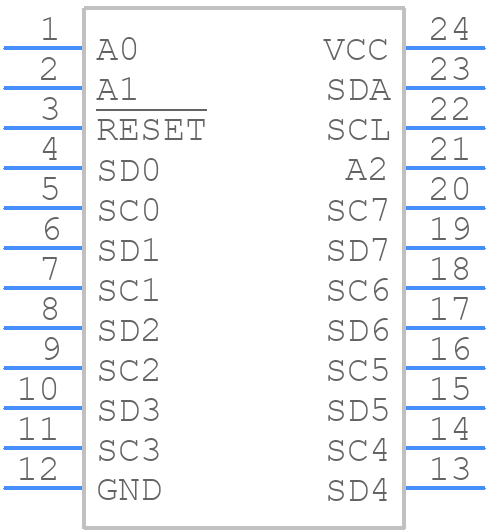

PCA9548ADBG4 - Texas Instruments

PCA9548ADBG4 Frequently Asked Questions (FAQs)

• What is the maximum frequency of the I2C bus that PCA9548ADBG4 can support?
  The PCA9548ADBG4 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit the frequency to 100 kHz for reliable operation.
• Can I use PCA9548ADBG4 to control multiple I2C buses with different voltage levels?
  Yes, the PCA9548ADBG4 has a built-in level shifter that allows it to translate between different voltage levels on the I2C bus, making it suitable for use with multiple buses with different voltage levels.
• How do I configure the PCA9548ADBG4 to work in a multi-master I2C bus environment?
  To configure the PCA9548ADBG4 for multi-master I2C bus operation, you need to set the MUXEN pin high and use the I2C bus address pins (A0, A1, A2) to select the desired I2C bus. You may also need to use external resistors to set the bus capacitance and pull-up resistors.
• What is the maximum number of devices that can be connected to each I2C bus of the PCA9548ADBG4?
  The maximum number of devices that can be connected to each I2C bus of the PCA9548ADBG4 is limited by the I2C bus specification, which is 128 devices per bus. However, the actual number of devices that can be connected may be limited by the bus capacitance, pull-up resistors, and other factors.
• Can I use the PCA9548ADBG4 to control I2C devices with different clock stretching requirements?
  Yes, the PCA9548ADBG4 has a built-in clock stretching feature that allows it to accommodate I2C devices with different clock stretching requirements. The device can stretch the clock signal to accommodate slower devices, ensuring reliable communication.
