PCA9548APWRG4 - Texas Instruments

Description: I2C Multiplexer 1-Element 8-IN 24-Pin TSSOP T/R

Download PCA9548APWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

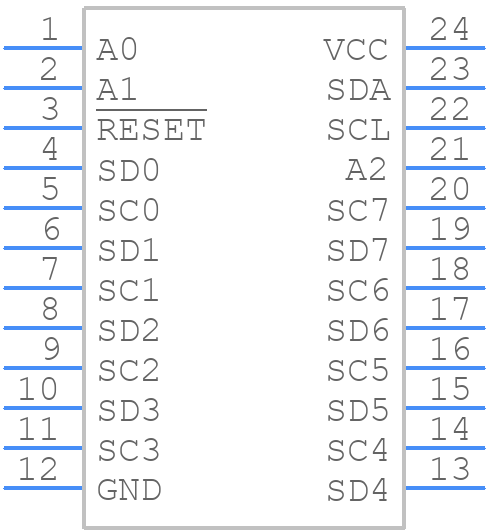

PCA9548APWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCA9548APWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
PCA9548APWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

PCA9548APWRG4 Details

  • Manufacturer Part Number:

    PCA9548APWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCA9548APWRG4 Frequently Asked Questions (FAQs)

  • The PCA9548APWRG4 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit the frequency to 100 kHz for reliable operation.
  • Yes, the PCA9548APWRG4 can be used as a level shifter for I2C signals, but it's not recommended as it's primarily designed as an I2C bus expander. For level shifting, it's better to use a dedicated level shifter IC.
  • To configure the PCA9548APWRG4 for multiple masters on the I2C bus, you need to use the EN pin to enable or disable the bus expander. You can also use the INT pin to generate an interrupt when a master is detected on the bus.
  • The PCA9548APWRG4 can support up to 8 downstream devices on each of its 8 channels, making it possible to connect up to 64 devices in total.
  • Yes, the PCA9548APWRG4 is compatible with both 3.3V and 5V devices on the same I2C bus, but you need to ensure that the voltage levels are compatible and that the devices can operate at the same frequency.
