A good PCB layout for PCA9561PW,118 involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable communication, make sure to follow the I2C bus specification, use pull-up resistors on the SCL and SDA lines, and implement a robust clock stretching mechanism. Also, ensure that the PCA9561PW,118 is properly configured and initialized before attempting communication.
The PCA9561PW,118 has a maximum junction temperature of 150°C. To ensure safe operation, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device during soldering or rework. Also, follow the recommended thermal design guidelines in the datasheet.
To troubleshoot issues with the PCA9561PW,118, use a logic analyzer or oscilloscope to monitor the I2C bus signals, check the device's configuration and initialization, and verify that the power supply and decoupling capacitors are properly connected. Also, consult the datasheet and application notes for troubleshooting guidelines.
Yes, the PCA9561PW,118 is a sensitive device and requires proper ESD protection. Use ESD-protected workstations, handle the device by the body, and avoid touching the pins. Also, ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCA9561PW,118 Overview

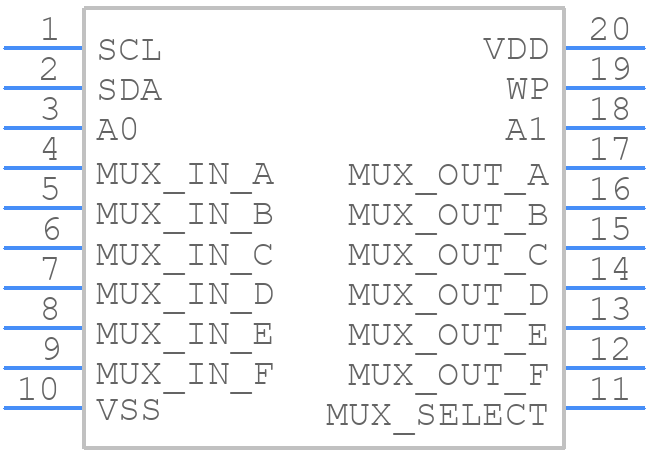

Use the download button to access the PCA9561PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95,
or try a keyword search, such as Multiplexer/Demultiplexers
