PCA9655EDWR2G - onsemi

Description: VCC Operating Range: 1.65 V to 5.5 V; SDA Sink Capability: 30 mA; 5.5 V Tolerant I/Os; Polarity Inversion Register; Active LOW Interrupt Output; Low Standby Current; Noise Filter on SCL/SDA Inputs; No Glitch on Powerup; Internal Poweron Reset; 64 Programmable Slave Addresses Using Three Address Pins; 16 I/O Pins Which Default to 16 Inputs; I2C SCL Clock Frequencies Supported:Standard Mode: 100 kHz/Fast Mode: 400 kHz/Fast Mode +: 1 MHz; ESD Performance: 2000 V Human Body Model,200 V Machine Model

Download PCA9655EDWR2G Model

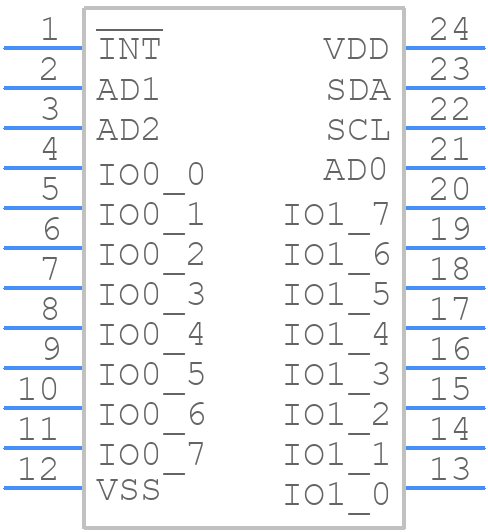

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCA9655EDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-24 CASE 751E-04 ISSUE E
click to zoom
3D Models
PCA9655EDWR2G - onsemi  - 3D model - Small Outline Packages - SOIC-24 CASE 751E-04 ISSUE E
click to zoom

PCA9655EDWR2G Details

  • Manufacturer Part Number:

    PCA9655EDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC−24 WB

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    0.0751

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

PCA9655EDWR2G Frequently Asked Questions (FAQs)

  • The maximum operating frequency of PCA9655EDWR2G is 400 kHz.
  • To ensure reliable communication, make sure to follow the I2C bus specification, use a pull-up resistor on the SCL line, and avoid bus contention.
  • The maximum capacitance load that PCA9655EDWR2G can drive is 400 pF.
  • Yes, PCA9655EDWR2G is compatible with 5V systems, but ensure that the input voltage does not exceed 6V to prevent damage.
  • Implement error detection and correction mechanisms, such as clock stretching, arbitration, and error flags, to handle bus faults or errors.
