PCA9701HF,118 - NXP

Description: Interface - Specialised 18V TOLERANT SPI 16B 8b GPI WITH INT

Download PCA9701HF,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

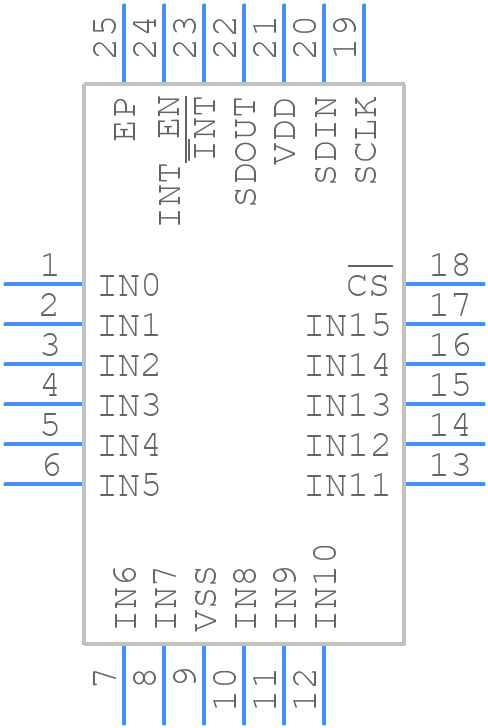

PCA9701HF,118 - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9701HF,118 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN24_11
click to zoom
3D Models
PCA9701HF,118 - NXP - 3D model - Quad Flat No-Lead - HVQFN24_11
click to zoom

PCA9701HF,118 Details

  • Manufacturer Part Number:

    PCA9701HF,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, 0.75 MM HEIGHT, PLASTIC, MO-220, SOT-994-1, HWQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOT994-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

PCA9701HF,118 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the PCA9701HF,118. Ensure a solid ground plane, keep the input and output traces short and symmetrical, and use a common mode filter to reduce EMI. Refer to NXP's application note AN11529 for more details.
  • The choice of external components, such as resistors and capacitors, depends on the specific application and operating conditions. Refer to the datasheet and NXP's application notes for guidance on component selection and calculation. Additionally, consider factors like tolerance, temperature coefficient, and parasitic effects.
  • The PCA9701HF,118 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • To troubleshoot oscillations or instability, check the PCB layout, ensure proper decoupling, and verify the component values. Also, review the device's operating conditions, such as supply voltage and input/output impedance. Use simulation tools or consult NXP's application notes for guidance on troubleshooting and optimization.
  • Yes, the PCA9701HF,118 is compatible with lead-free soldering processes. NXP ensures that their devices meet the requirements for lead-free soldering, as specified in the JEDEC standard J-STD-020. However, follow the recommended soldering profile and handling procedures to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9701HF,118 Overview

Use the download button to access the PCA9701HF,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA97, or try a keyword search, such as Other Interface ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
