PCA9848BSMP - NXP

Description: Digital Bus Switch ICs 8-channel ultra-low voltage, Fm+ I2C-bus switch with reset

Download PCA9848BSMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

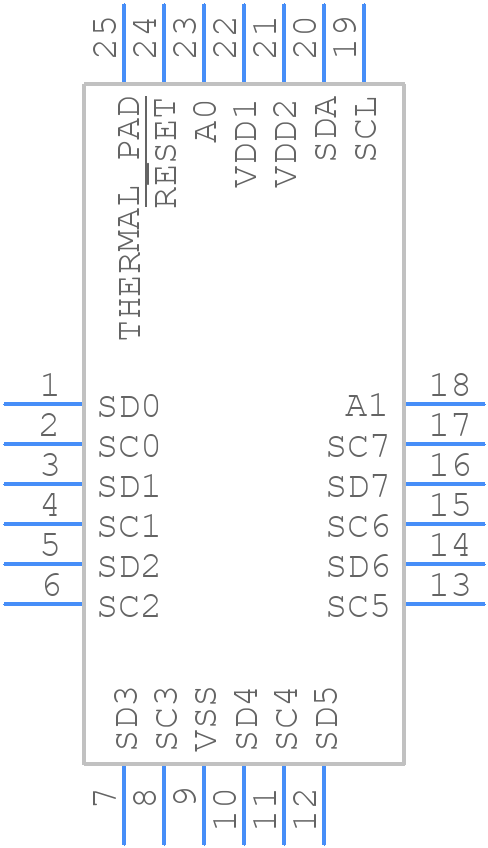

PCA9848BSMP - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9848BSMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT616-3
click to zoom
3D Models
PCA9848BSMP - NXP - 3D model - Quad Flat No-Lead - SOT616-3
click to zoom

PCA9848BSMP Details

  • Manufacturer Part Number:

    PCA9848BSMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7.88

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

PCA9848BSMP Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11588, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To configure the PCA9848BSMP for I2C bus stretching, set the STREN bit in the CFG register to '1'. This enables the device to stretch the clock signal during data transmission, allowing for longer bus lengths and more devices on the bus.
  • The PCA9848BSMP can drive capacitive loads up to 400 pF per bus line, making it suitable for use in systems with long cables or multiple devices connected to the bus.
  • To troubleshoot I2C bus issues, use a logic analyzer or oscilloscope to monitor the bus signals and verify that the clock and data lines are within the specified voltage and timing ranges. Check for bus contention, incorrect device addressing, and clock stretching issues.
  • The PCA9848BSMP is a 3.3V device, but it is 5V tolerant on the I2C bus pins. However, it's recommended to use a level translator or voltage regulator to ensure that the device operates within its specified voltage range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9848BSMP Overview

Use the download button to access the PCA9848BSMP schematic symbol, PCB footprint, and 3D model.
