PCA9958HNY - NXP

Description: LED Lighting Driver ICs 24-bit 63 mA Constant current LED Driver with 10 MHz SPI interface in HVQFN40 package

Download PCA9958HNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

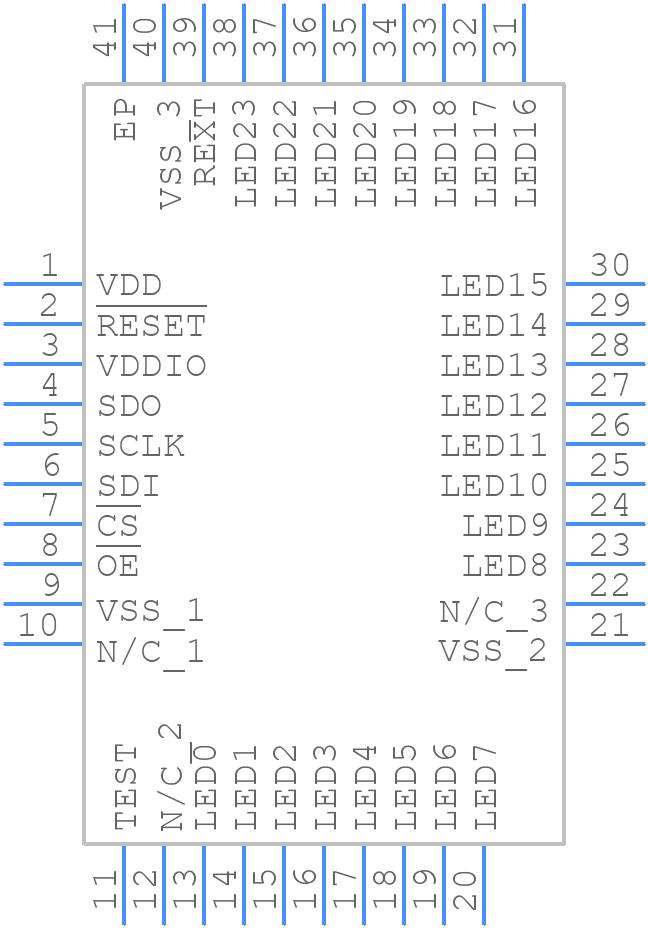

PCA9958HNY - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9958HNY - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-21(D)
click to zoom
3D Models
PCA9958HNY - NXP - 3D model - Quad Flat No-Lead - SOT618-21(D)
click to zoom

PCA9958HNY Details

  • Manufacturer Part Number:

    PCA9958HNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Interface IC Type:

    LED DISPLAY DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9958HNY Overview

Use the download button to access the PCA9958HNY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA99, or try a keyword search, such as Display Drivers
