PCF8883T/1,118 - NXP

Description: NXP - PCF8883T/1,118 - CAPACITIVE TOUCH, SOIC-8

Download PCF8883T/1,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

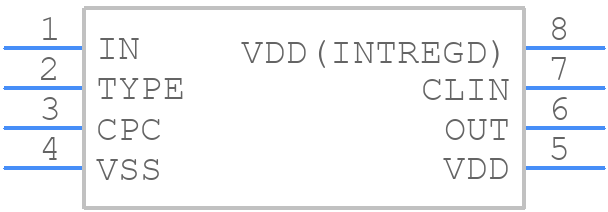

PCF8883T/1,118 - NXP - PCB symbol
click to zoom
PCB Footprints
PCF8883T/1,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - PCF8883T
click to zoom
3D Models
PCF8883T/1,118 - NXP - 3D model - Small Outline Packages - PCF8883T
click to zoom

PCF8883T/1,118 Details

  • Manufacturer Part Number:

    PCF8883T/1,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 3 TO 9 V SUPPLY VOLTAGE AT -40 TO 85 DEGREE CENTIGRADE

  • Body Breadth:

    3.905 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.005 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0-9V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    9 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

PCF8883T/1,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for PCF8883T/1,118 is 2.3V to 5.5V.
  • To ensure reliable communication, use a pull-up resistor on the SDA line, and ensure the clock frequency is within the specified range (100 kHz to 400 kHz).
  • The maximum capacitance load for the PCF8883T/1,118 is 400 pF.
  • Yes, the PCF8883T/1,118 has built-in noise filtering and is designed to operate in noisy environments. However, it's still recommended to follow proper PCB design and layout guidelines to minimize noise interference.
  • To handle bus contention, use an I2C bus arbiter or implement a bus arbitration mechanism in your design to ensure only one master can access the bus at a time.
