PCI1510ZGU - Texas Instruments

Description: PC Card Controller Parallel Interface 3.3V/5V 144-Pin BGA MICROSTAR Tray

Download PCI1510ZGU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCI1510ZGU - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

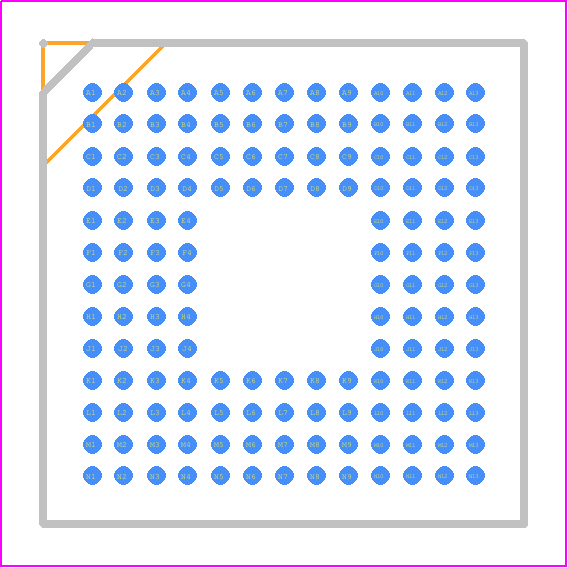

PCI1510ZGU - Texas Instruments PCB footprint - BGA - BGA - GGU (S-PBGA-N144)
click to zoom
3D Models
PCI1510ZGU - Texas Instruments - 3D model - BGA - GGU (S-PBGA-N144)
click to zoom

PCI1510ZGU Details

  • Manufacturer Part Number:

    PCI1510ZGU

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    GREEN, PLASTIC, BGA-144

  • Pin Count:

    144

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Address Bus Width:

    32

  • Bus Compatibility:

    PCI

  • Clock Frequency-Max:

    33 MHz

  • Data Transfer Rate-Max:

    130 MBps

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA144,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCMCIA

PCI1510ZGU Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke and a ferrite bead to filter the power supply lines.
  • Use a power-on reset (POR) circuit to ensure the device is properly reset during power-up. Configure the device using the SPI interface during boot-up, and use the reset pin to reset the device if necessary.
  • The PCI1510ZGU supports data transfer rates up to 2.5 Gbps. However, the actual data transfer rate may be limited by the system's bus speed, signal integrity, and other factors.
  • Use a logic analyzer or oscilloscope to capture and analyze the device's signals. Check the device's status registers and error flags to identify the source of the issue. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the PCI1510ZGU can be used in a hot-swappable system. However, ensure that the device is properly powered down before removal, and use a hot-swap controller to manage the power and signal lines during insertion and removal.
