Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using decoupling capacitors to reduce noise and EMI.
The PCI1520ZHK is a PCIe Gen 3 device, but it can be configured for Gen 1 or Gen 2 operation by adjusting the link speed and width using the device's configuration registers. Refer to the datasheet and the PCIe specification for more information.
The maximum power consumption of the PCI1520ZHK is approximately 3.3W, but this can vary depending on the operating frequency, voltage, and usage. It's essential to ensure that the power supply can provide sufficient power to the device.
The PCI1520ZHK supports hot-plug functionality, but it requires additional circuitry and firmware implementation. Texas Instruments provides guidelines and examples in the datasheet and application notes to help implement hot-plug functionality.
The PCI1520ZHK has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCI1520ZHK Overview

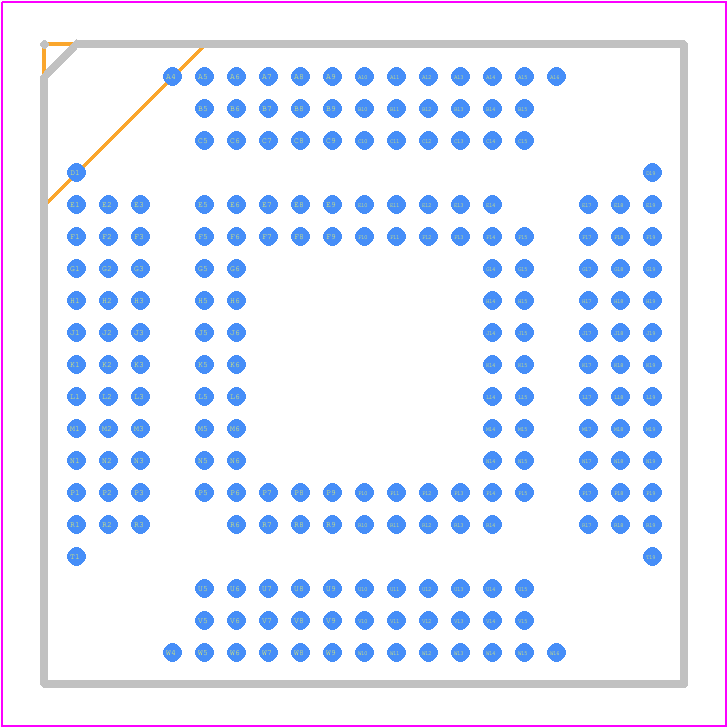

Use the download button to access the PCI1520ZHK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCI15,
or try a keyword search, such as Bus Controllers
