- Part Number PCI2050BGHK
- Manufacturer Texas Instruments
- Pin Count 257
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - GHK (S-PBGA-N257)
- Released Date Dec 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PCI2050BGHK Details
-
Manufacturer Part Number:
PCI2050BGHK
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
BGA
-
Package Description:
BGA-257
-
Pin Count:
257
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
PCI2050BGHK Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using decoupling capacitors to reduce noise and EMI.
-
To configure the PCI2050BGHK for PCIe Gen3 operation, set the GEN3_EN pin high, and ensure that the REFCLK input is within the specified frequency range (100 MHz ± 300 ppm). Additionally, configure the device's registers according to the PCIe Gen3 specification.
-
The maximum power consumption of the PCI2050BGHK is approximately 1.5 W, but this can vary depending on the operating frequency, voltage, and other factors. It's essential to follow the power management guidelines in the datasheet to ensure reliable operation.
-
The PCI2050BGHK has built-in hot plug detection and power management capabilities. Use the HPD_N and PWREN pins to detect hot plug events and control power to the device. Additionally, configure the device's registers to enable power management features, such as ASPM and L1 substates.
-
The recommended termination resistors for the PCI2050BGHK are 50 Ω for the PCIe lanes and 22 Ω for the REFCLK input. However, the optimal termination values may vary depending on the specific system design and PCB layout.
Trust Checks
Community Provided
System Verified
Community Approved
PCI2050BGHK Overview

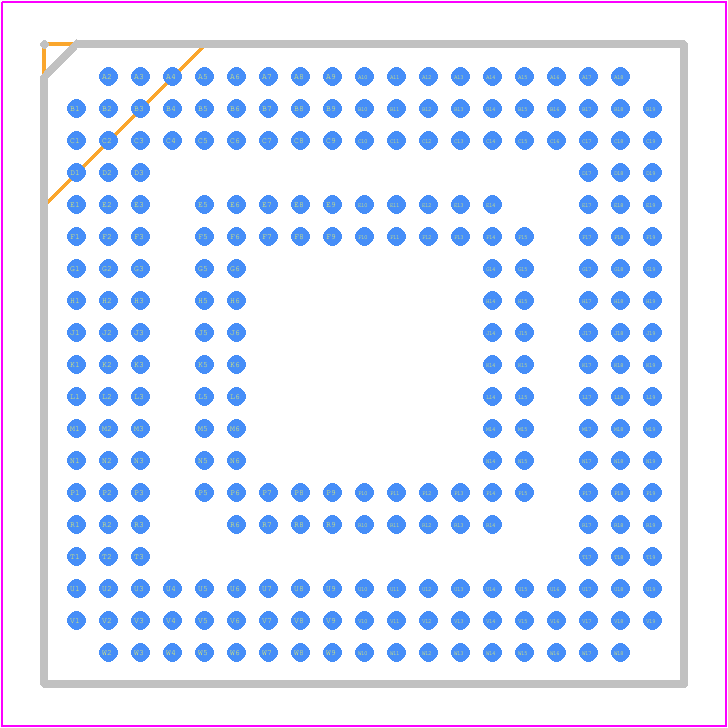

Use the download button to access the PCI2050BGHK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCI20,
or try a keyword search, such as Bus Controllers
