PCI2050BIPDVG4 - Texas Instruments

Description: Texas Instruments PCI2050BIPDVG4, Peripheral Driver, 208-Pin, LQFP

Download PCI2050BIPDVG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCI2050BIPDVG4 - Texas Instruments - PCB symbol
click to zoom

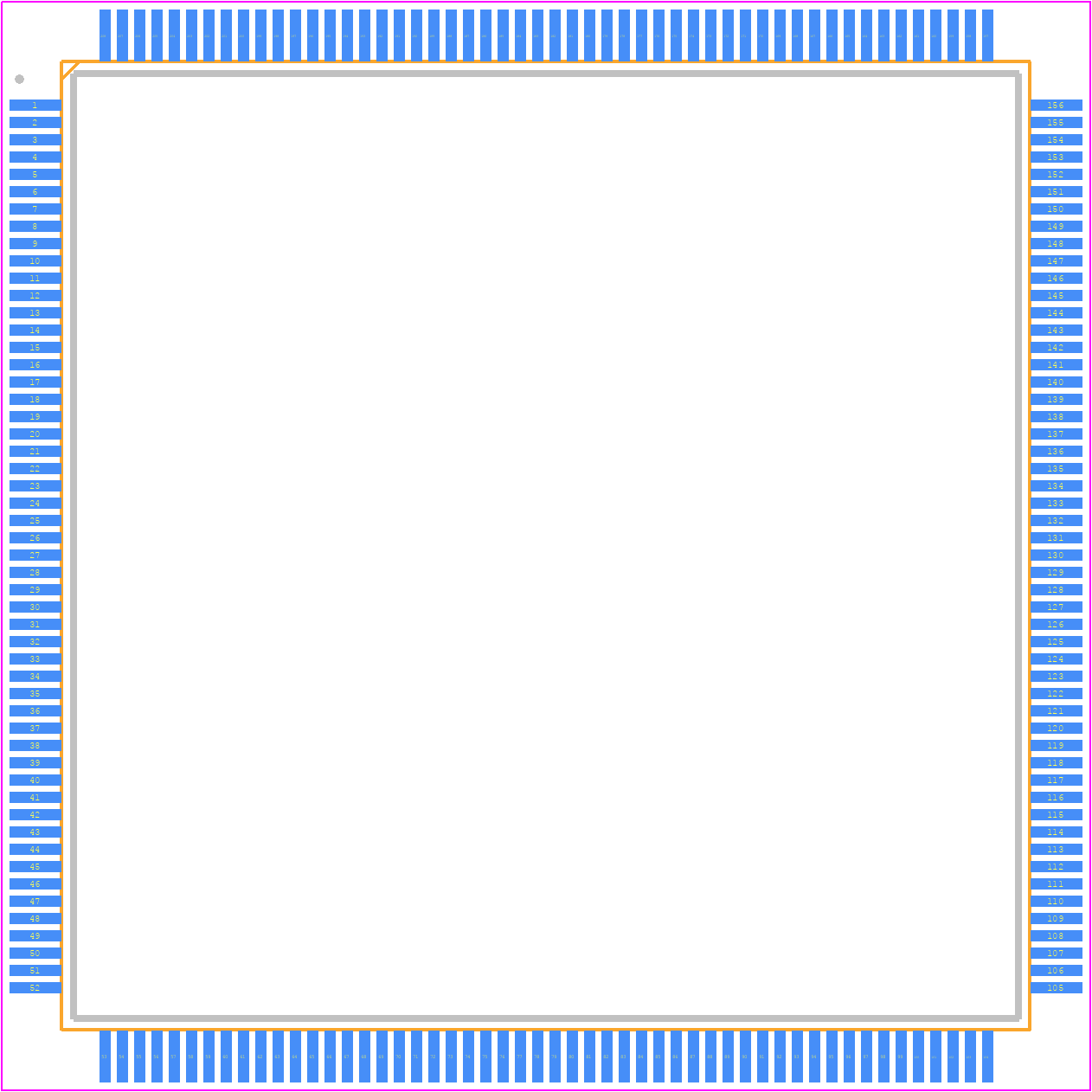

PCB Footprints
PCI2050BIPDVG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PDV(LF-PQFP-G208)
click to zoom
3D Models
PCI2050BIPDVG4 - Texas Instruments - 3D model - Quad Flat Packages - PDV(LF-PQFP-G208)
click to zoom

PCI2050BIPDVG4 Details

  • Manufacturer Part Number:

    PCI2050BIPDVG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    208

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Address Bus Width:

    32

  • Bus Compatibility:

    ISA; PCI

  • Clock Frequency-Max:

    66 MHz

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e4

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

PCI2050BIPDVG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'PCI Express Electrical and Layout Specifications' document. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce noise and improve signal integrity.
  • The PCI2050BIPDVG4 is a PCIe Gen 3 device, but it can be configured to operate at lower speeds using the 'Speed Change Request' mechanism. This can be done by writing to the 'Link Control Register' (offset 0x10) and setting the 'Target Link Speed' field to the desired speed.
  • The maximum power consumption of the PCI2050BIPDVG4 is 3.3W, but this can vary depending on the operating frequency, voltage, and other factors. It's recommended to check the power consumption in the specific application and ensure that the power supply can provide the required power.
  • The PCI2050BIPDVG4 has built-in hot plug detection and power management capabilities. The device can detect the presence of a PCIe device and adjust the power consumption accordingly. The 'Power Management' register (offset 0x14) can be used to configure the power management settings.
  • The PCI2050BIPDVG4 requires a 100MHz clock input, which can be generated using an external clock source or a clock generator. It's recommended to use a clock source with low jitter and noise to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCI2050BIPDVG4 Overview

Use the download button to access the PCI2050BIPDVG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCI20, or try a keyword search, such as Bus Controllers
