Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PCI2050PDV has a flexible voltage rail configuration. You can configure the device using the VSEL pins to select from various voltage rails, such as 3.3V, 2.5V, 1.8V, and 1.5V. Refer to the datasheet for specific pin configurations and voltage rail options.
The maximum current draw of the PCI2050PDV depends on the specific configuration and operating conditions. However, according to the datasheet, the maximum current draw is typically around 1.5A for the 3.3V rail and 1A for the 2.5V rail. It's essential to check the datasheet and perform thermal calculations to ensure the device operates within its recommended operating conditions.
To troubleshoot issues with the PCI2050PDV, start by checking the power supply voltage, PCB layout, and component placement. Ensure that the device is properly decoupled and that the input capacitors are sufficient. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or ringing. Refer to the datasheet and application notes for specific troubleshooting guidelines and recommendations.
Yes, the PCI2050PDV is compatible with lead-free soldering processes. Texas Instruments has qualified the device for lead-free soldering, and it meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCI2050PDV Overview

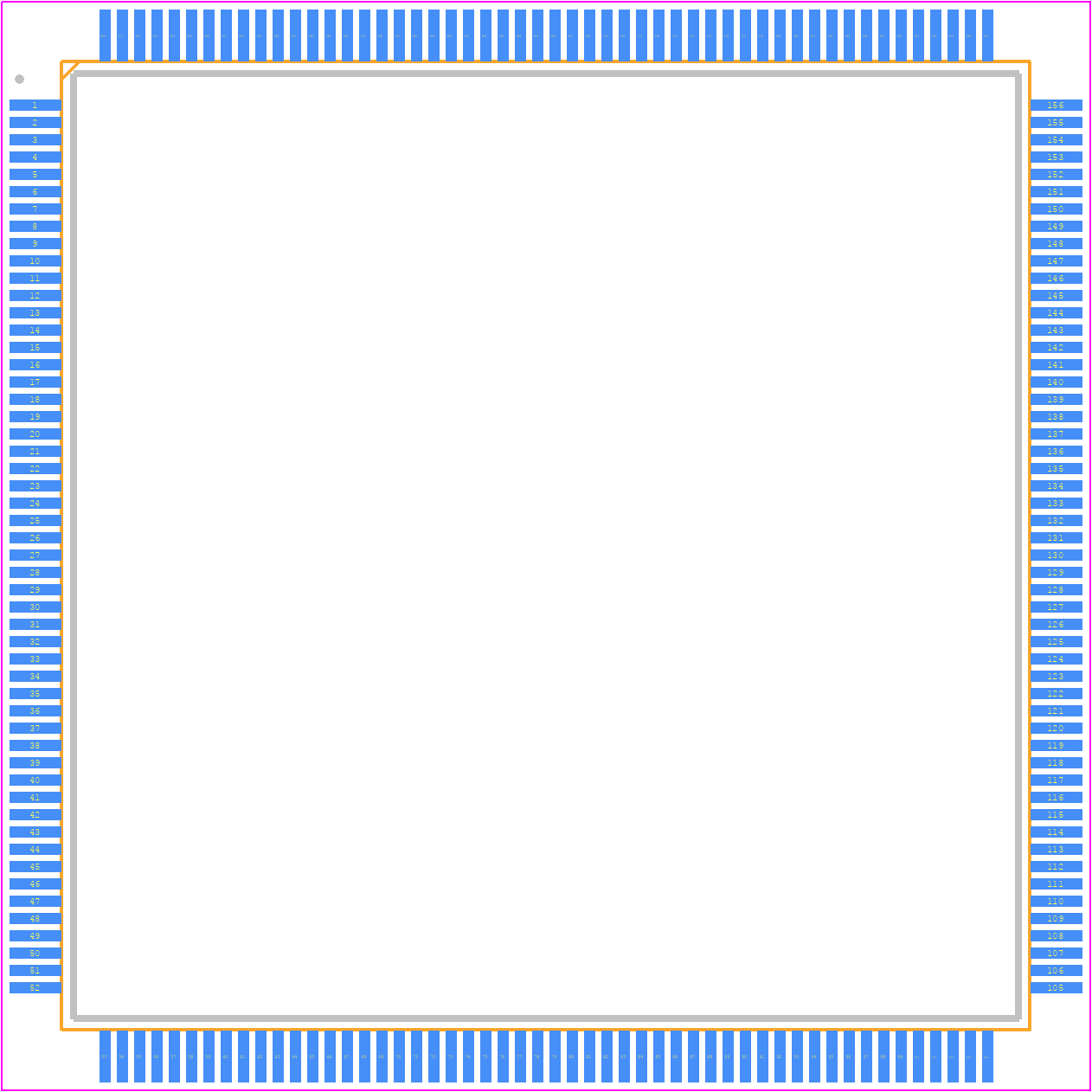

Use the download button to access the PCI2050PDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCI20,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
