PCI2250PCM - Texas Instruments

Description: 32-Bit, 33 MHz PCI-to-PCI Bridge, Compact PCI Hot-Swap Friendly, 4-Master

Download PCI2250PCM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCI2250PCM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

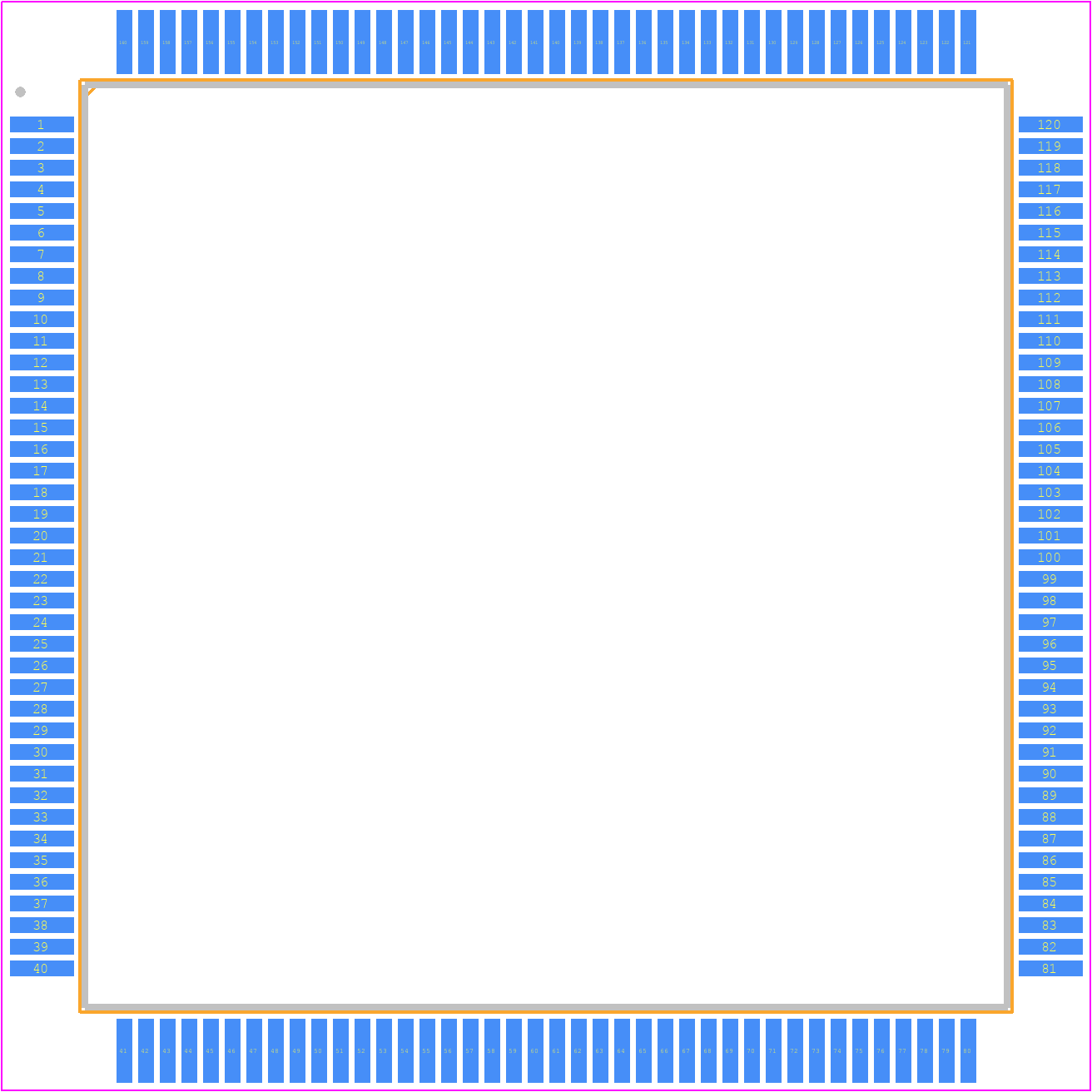

PCI2250PCM - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PCM (S-PQFP-G160)
click to zoom
3D Models
PCI2250PCM - Texas Instruments - 3D model - Quad Flat Packages - PCM (S-PQFP-G160)
click to zoom

PCI2250PCM Details

  • Manufacturer Part Number:

    PCI2250PCM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    QFP

  • Pin Count:

    160

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Address Bus Width:

    32

  • Bus Compatibility:

    PCI

  • Clock Frequency-Max:

    33.33 MHz

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PQFP-G160

  • JESD-609 Code:

    e4

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    160

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP160,1.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

PCI2250PCM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The PCI2250PCM is a highly configurable device, and the configuration depends on the specific application. Texas Instruments provides a configuration guide in the application note SLUA624, which includes examples and guidelines for configuring the device for various applications.
  • The PCI2250PCM has an operating temperature range of 0°C to 70°C, but it can be extended to -40°C to 85°C with proper thermal management and design considerations.
  • Texas Instruments provides a troubleshooting guide in the application note SLUA625, which includes steps for identifying and resolving common issues, as well as tools and techniques for debugging and testing the device.
  • The PCI2250PCM is a peripheral component interconnect (PCI) device, and as such, it is compatible with most operating systems that support PCI, including Windows and Linux. However, the specific driver and software support may vary depending on the operating system and application.
