PCI7402ZHK - Texas Instruments

PCI7402ZHK Details

• Manufacturer Part Number:

  PCI7402ZHK

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

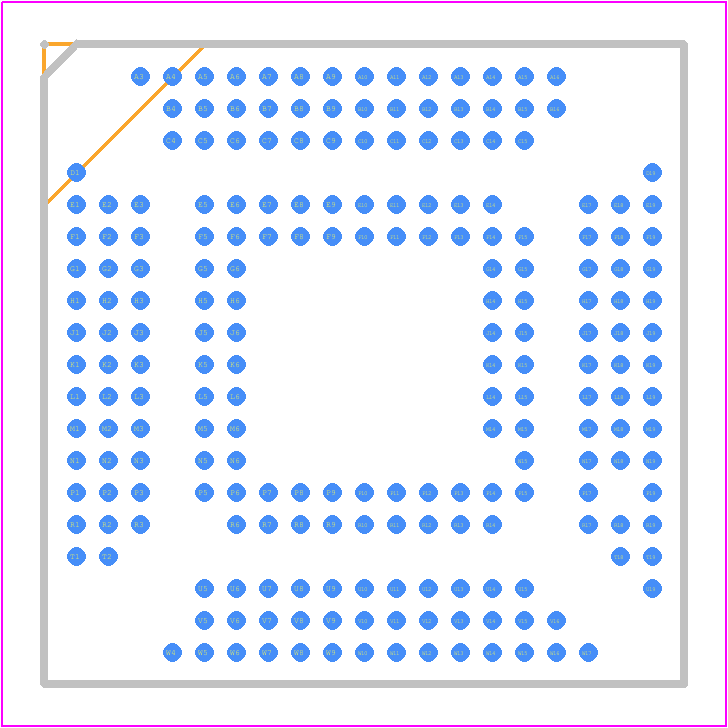

• Part Package Code:

  BGA

• Package Description:

  GREEN, PLASTIC, BGA-216

• Pin Count:

  216

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  32

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  24.576 MHz

• Data Transfer Rate-Max:

  132 MBps

• Drive Interface Standard:

  IEEE1394; IEEE1394A

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PBGA-B216

• JESD-609 Code:

  e1

• Length:

  16 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  216

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.4 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, PCI
