Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the decoupling capacitors are placed close to the device.
The PCI7412ZHK has a thermal pad that must be connected to a solid ground plane to dissipate heat efficiently. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Follow the thermal design guidelines in the datasheet and application notes.
The PCI7412ZHK has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure the device operates within the recommended temperature range for optimal performance and longevity.
To configure the PCI7412ZHK for PCIe Gen3 operation, set the GEN3_EN pin high and ensure the device is powered from a 3.3V supply. Additionally, follow the PCIe Gen3 specification guidelines for signal integrity, clocking, and power management.
The PCI7412ZHK requires a specific power sequencing to ensure proper operation. Power up the 3.3V supply first, followed by the 1.8V supply. Ensure the power supplies are stable and within the recommended voltage range before applying the clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCI7412ZHK Overview

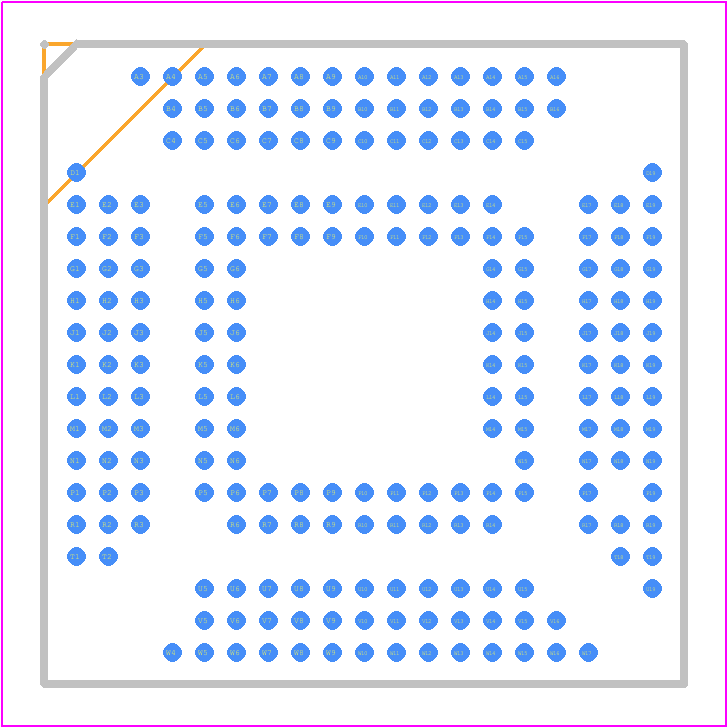

Use the download button to access the PCI7412ZHK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCI74,
or try a keyword search, such as Bus Controllers
