PCIB24W9M400A1 footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

PCB Footprints

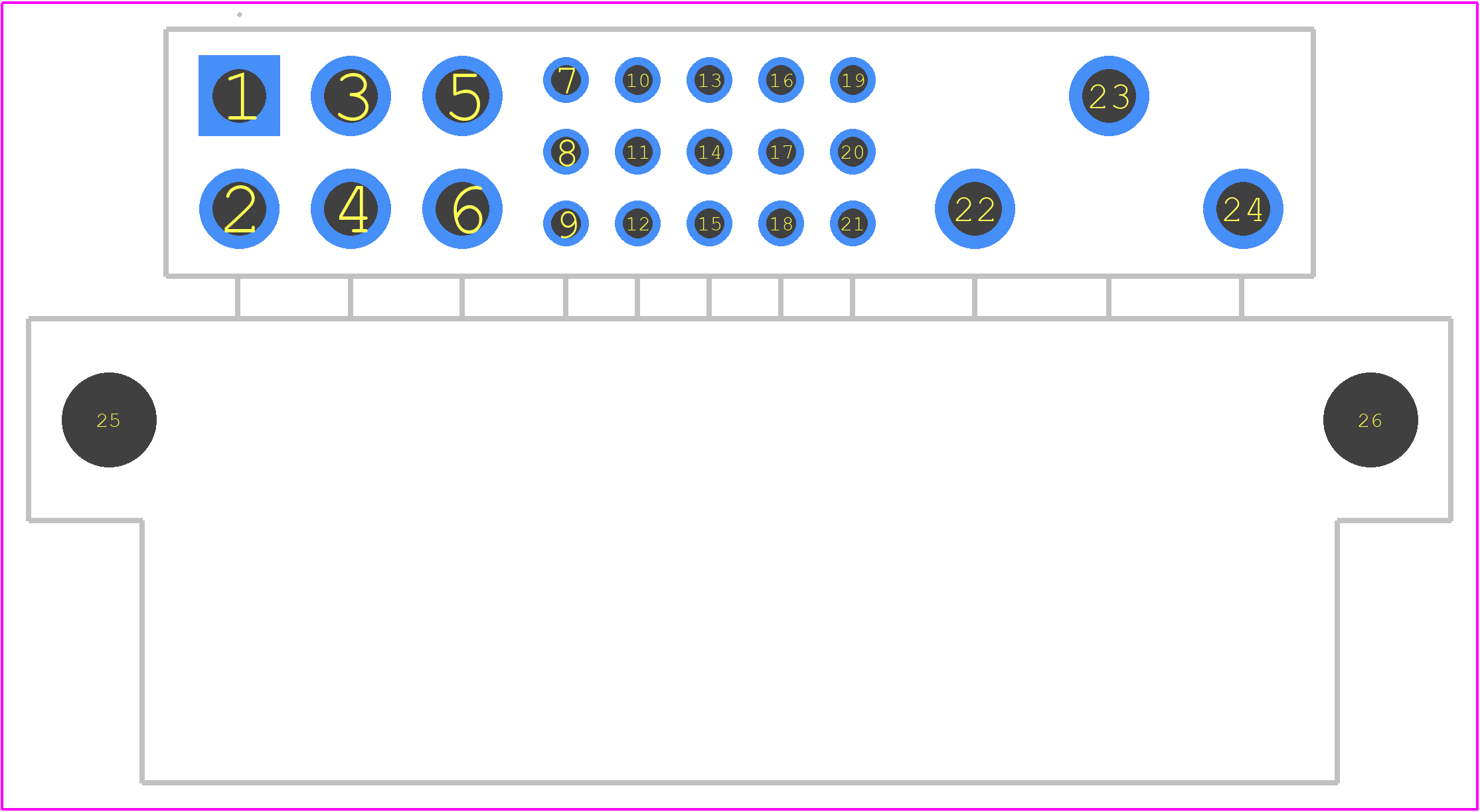

PCIB24W9M400A1 - Positronic PCB footprint - Other - Other - PCIB24W9M400A1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCIB24W9M400A1
Part Number PCIB24W9M400A1
Manufacturer Positronic
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - PCIB24W9M400A1-1
Released Date Jul 30, 2025
Last Modified Date Jul 31, 2025 3:38 AM UTC
Pinout / Pin List Click Here (Member Only)

PCIB24W9M400A1 Details

Manufacturer Part Number:
PCIB24W9M400A1
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
8
Additional Feature:
POLARIZED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL
Contact Finish Termination:
GOLD FLASH OVER NICKEL
Contact Gender:
MALE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
24
UL Flammability Code:
94V-0

PCIB24W9M400A1 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the PCIB24W9M400A1 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
Yes, the PCIB24W9M400A1 is designed to operate in harsh environments. It has an operating temperature range of -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability.
The PCIB24W9M400A1 has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect-disconnect cycles without compromising its performance or reliability.
The PCIB24W9M400A1 is designed to work with PCBs of various thicknesses. However, it's essential to ensure that the PCB thickness is within the recommended range of 0.8-2.4 mm (0.031-0.094 in) to ensure reliable connections and prevent damage to the connector.

Trust Checks

Community Provided

System Verified

Community Approved

PCIB24W9M400A1 Overview

Use the download button to access the PCIB24W9M400A1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PCIB2, or try a keyword search, such as Power Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
