PCIB26W11M400A1 footprint, schematic symbol and 3D model by Positronic

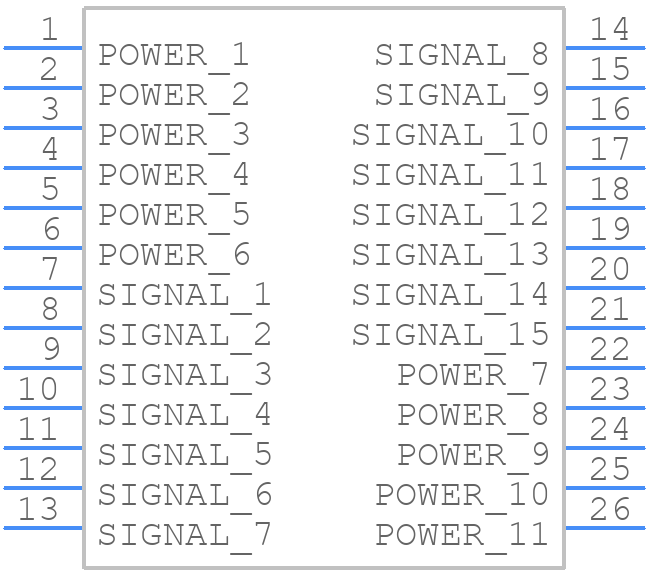

Symbol

click to zoom

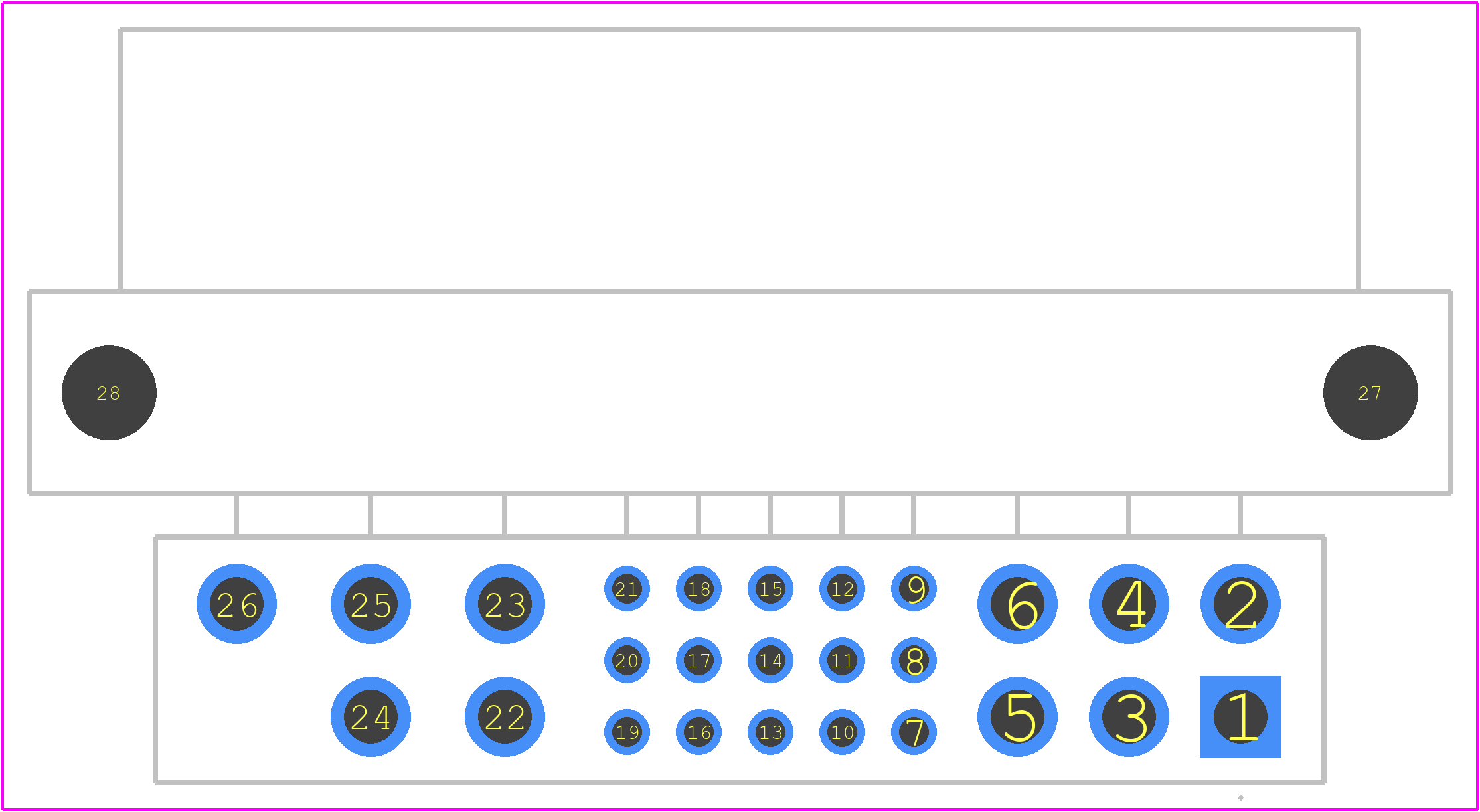

PCB Footprints

PCIB26W11M400A1 - Positronic PCB footprint - Other - Other - PCIB26W11M400A1-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCIB26W11M400A1
Part Number PCIB26W11M400A1
Manufacturer Positronic
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - PCIB26W11M400A1-2
Released Date Jun 30, 2026
Last Modified Date Jun 30, 2026 12:15 PM UTC
Pinout / Pin List Click Here (Member Only)

PCIB26W11M400A1 Details

Manufacturer Part Number:
PCIB26W11M400A1
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
8
Additional Feature:
POLARIZED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL
Contact Finish Termination:
GOLD FLASH OVER NICKEL
Contact Gender:
MALE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0

PCIB26W11M400A1 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the PCIB26W11M400A1 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 Hz to 2000 Hz, 10 G peak acceleration.
The PCIB26W11M400A1 is designed to operate in a wide range of temperatures (-55°C to 125°C) and humidity levels (up to 95% RH). However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and longevity.
The PCIB26W11M400A1 has a mating cycle life of 500 cycles minimum, which means it can withstand repeated connections and disconnections without compromising its performance or reliability.
The PCIB26W11M400A1 is designed for use with PCBs of 1.57 mm (0.062 in) thickness. However, it can be used with PCBs of other thicknesses, but you may need to use a different screw or standoff to ensure proper alignment and connection.

Trust Checks

Community Provided

System Verified

Community Approved

PCIB26W11M400A1 Overview

Use the download button to access the PCIB26W11M400A1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PCIB2, or try a keyword search, such as Power Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
