PCIH47F9300A1/AA - Positronic

Description: 47 Connector Receptacle, Female Sockets Through Hole Blue CompactPCI®, 40A/28A/5A, -55°C ~ 125°C

Download PCIH47F9300A1/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

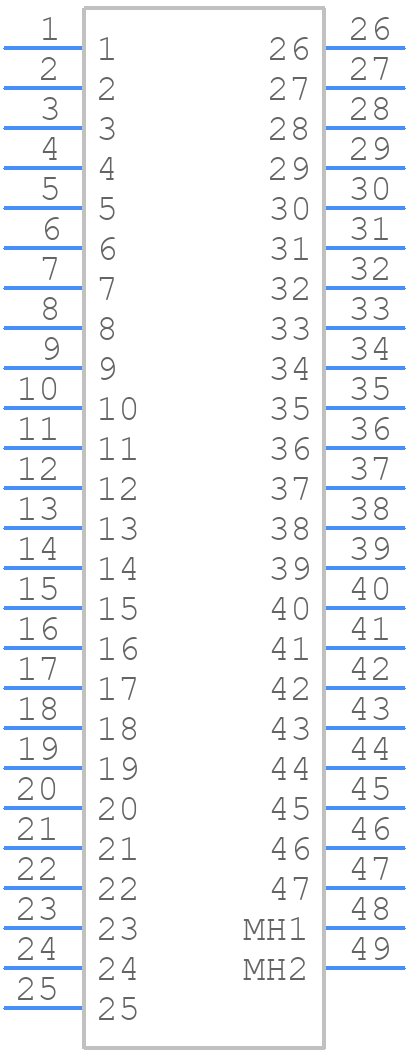

PCIH47F9300A1/AA - Positronic - PCB symbol
click to zoom
PCB Footprints

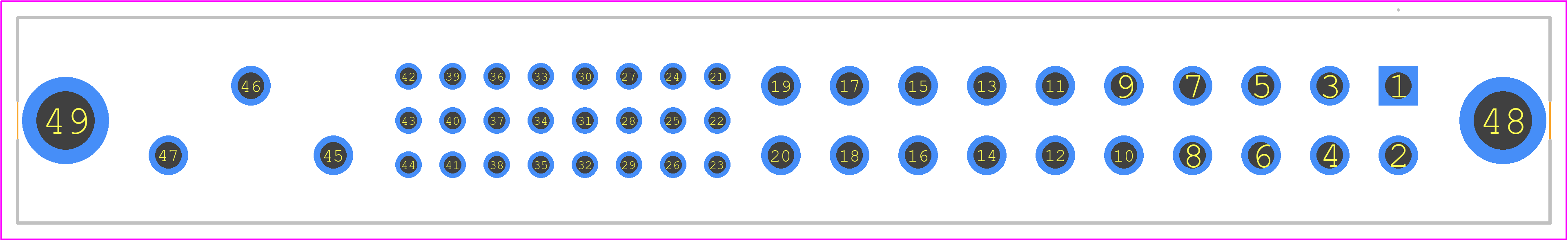

PCIH47F9300A1/AA - Positronic PCB footprint - Other - Other - PCIH47F9300A1/AA-2
click to zoom
3D Models
PCIH47F9300A1/AA - Positronic - 3D model - Other - PCIH47F9300A1/AA-2
click to zoom

PCIH47F9300A1/AA Details

  • Manufacturer Part Number:

    PCIH47F9300A1/AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    8.35

  • Additional Feature:

    POLARIZED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    47

  • UL Flammability Code:

    94V-0

PCIH47F9300A1/AA Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the PCIH47F9300A1/AA connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the PCIH47F9300A1/AA connector is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, defense, and industrial equipment.
  • The operating temperature range of the PCIH47F9300A1/AA connector is -55°C to 125°C (-133°F to 257°F).
  • Yes, the PCIH47F9300A1/AA connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
  • The mating cycle life of the PCIH47F9300A1/AA connector is 500 cycles minimum.
