- Part Number PCIM34W13F300A1/AA
- Manufacturer Positronic
- Pin Count 36
- Part Category Connector
- Package Category Other
- Footprint Name Other - PCIM34W13F300A1/AA-1
- Released Date Nov 4, 2021
- Last Modified Date May 20, 2024 9:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
PCIM34W13F300A1/AA Details
-
Manufacturer Part Number:
PCIM34W13F300A1/AA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Amphenol Positronic
-
YTEOL:
8
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
GOLD FLASH OVER NICKEL
-
Contact Finish Termination:
GOLD FLASH OVER NICKEL
PCIM34W13F300A1/AA Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the PCIM34W13F300A1/AA is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B vibration standard, making it suitable for use in applications with high vibration levels.
-
Yes, the PCIM34W13F300A1/AA is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C and can withstand humidity levels up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
-
The PCIM34W13F300A1/AA has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.
-
While the PCIM34W13F300A1/AA is designed for use with 13 AWG wire, it can accommodate wire sizes ranging from 11 AWG to 15 AWG. However, it's essential to follow the recommended wire stripping and termination guidelines to ensure reliable connections.
Trust Checks
Community Provided
System Verified
Community Approved
PCIM34W13F300A1/AA Overview

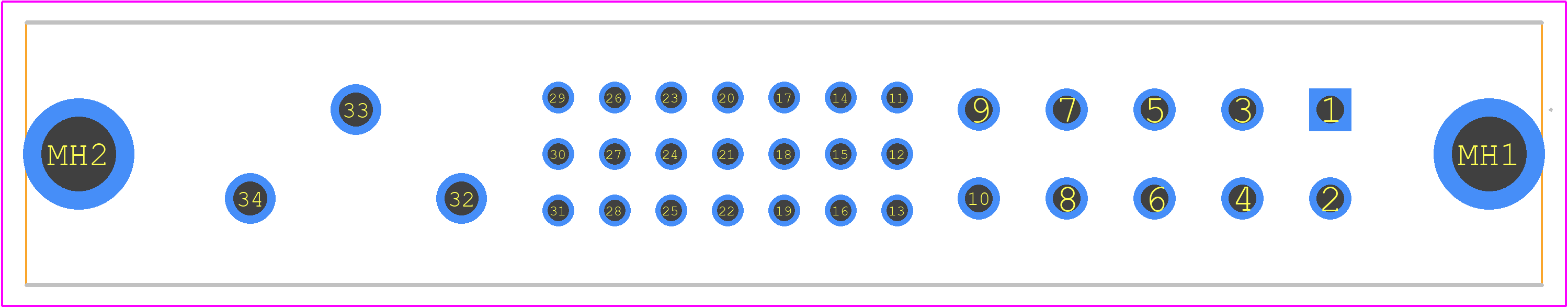

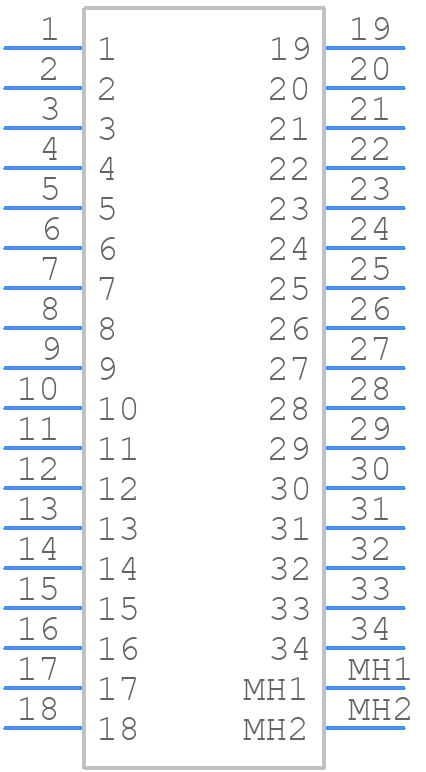

Use the download button to access the PCIM34W13F300A1/AA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCIM3,
or try a keyword search, such as Headers and Edge Type Connectors
About Positronic
Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical.
Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
