PCIM34W13F400A1/AA. footprint, schematic symbol and 3D model by Positronic

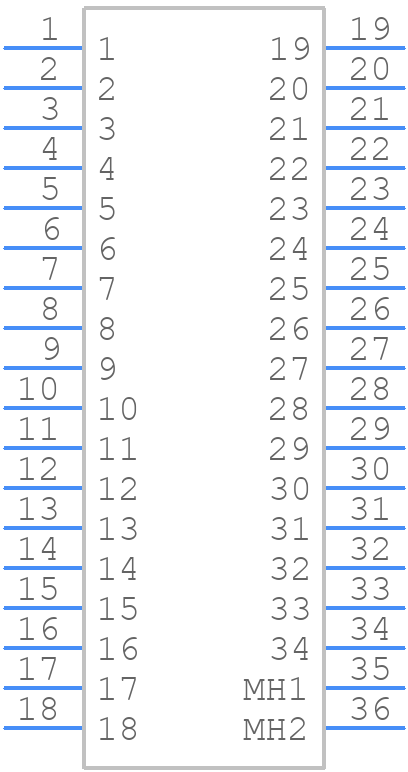

Symbol

click to zoom

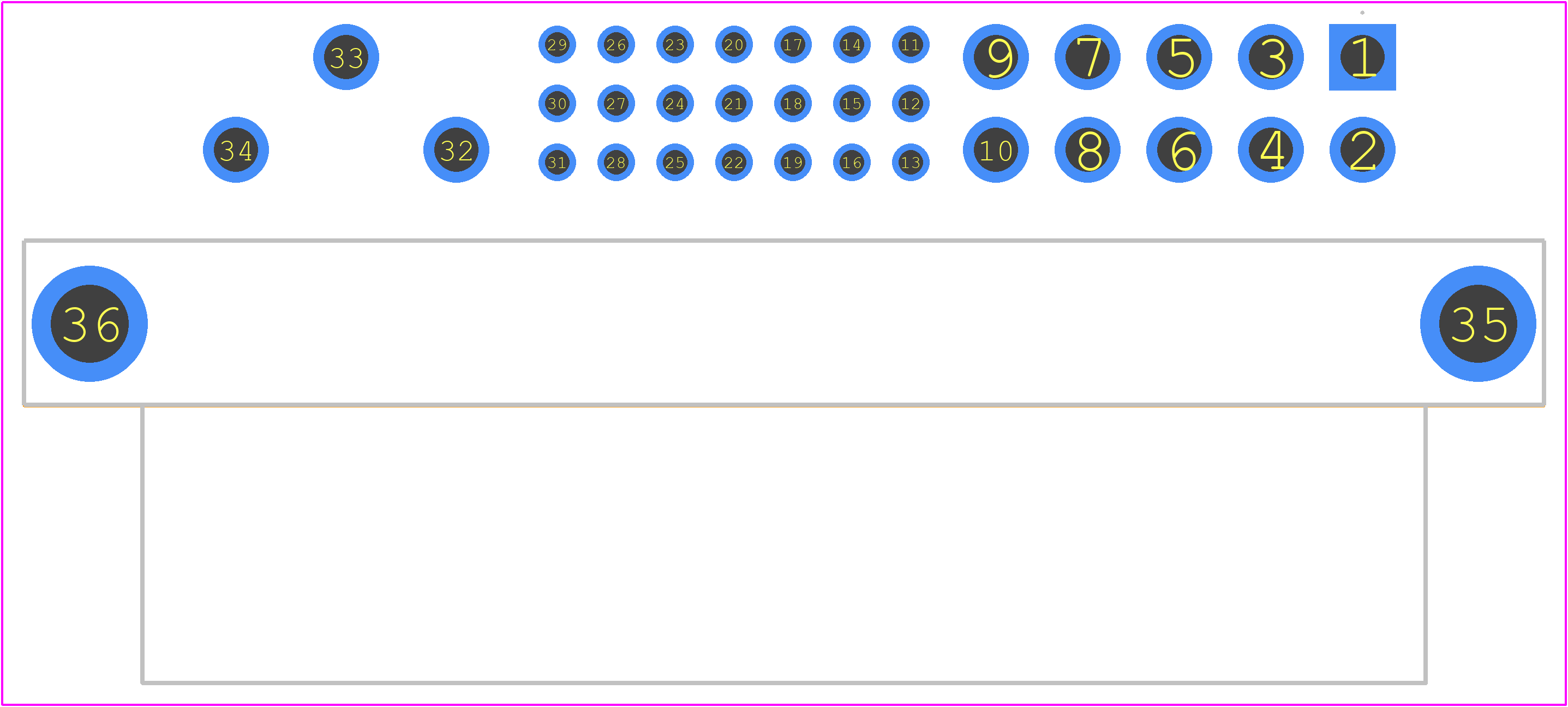

PCB Footprints

PCIM34W13F400A1/AA. - Positronic PCB footprint - Other - Other - PCIM34W13F400A1/AA.-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCIM34W13F400A1/AA.
Part Number PCIM34W13F400A1/AA.
Manufacturer Positronic
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - PCIM34W13F400A1/AA.-2
Released Date Jul 10, 2024
Last Modified Date Jul 10, 2024 6:24 AM UTC
Pinout / Pin List Click Here (Member Only)

PCIM34W13F400A1/AA. Details

Manufacturer Part Number:
PCIM34W13F400A1/AA.
Manufacturer:
Amphenol Positronic

Trust Checks

Community Provided

System Verified

Community Approved

PCIM34W13F400A1/AA. Overview

Use the download button to access the PCIM34W13F400A1/AA. schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PCIM3, or try a keyword search, such as Power Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
