PCJ-105D3M,301 - TE Connectivity

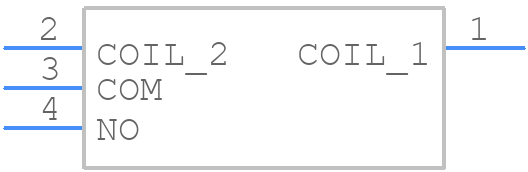

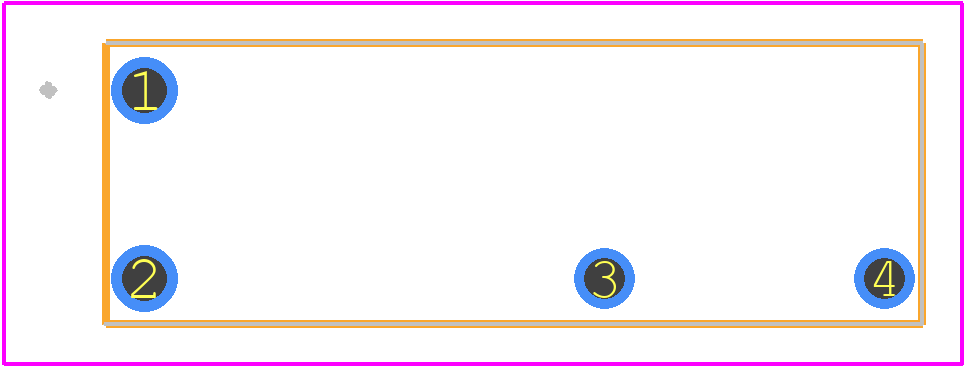

PCJ-105D3M,301 Details

• Manufacturer Part Number:

  PCJ-105D3M,301

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Body Breadth:

  7 mm

• Body Height:

  15.01 mm

• Body Length or Diameter:

  20.39 mm

• Coil Operate Voltage(DC):

  3.75 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  0.25 V

• Coil Resistance:

  125 Ω

• Coil Voltage(DC)-Max:

  5 V

• Coil Voltage-Nom:

  4 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  1250VA@250VAC

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Power Rating R Load:

  150W@30VDC

• Contact (DC) Max Rating R Load:

  3A@30VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER NICKEL

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  4

• Operate Time:

  10 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  20.4mm x 7mm x 15mm

• Reference Standard:

  CSA; UL; VDE

• Relay Action:

  LATCHED

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  4 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003200406400812802 inch

• Termination Type:

  SOLDER/QUICK CONNECT
