PCM13SMTR - LITTELFUSE

Description: Slide Switch SP3T Surface Mount, Right Angle 300MA 6V -20°C ~ 85°C

Download PCM13SMTR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PCM13SMTR model

Email notifications will be applied after download.

Send part feedback

Symbol

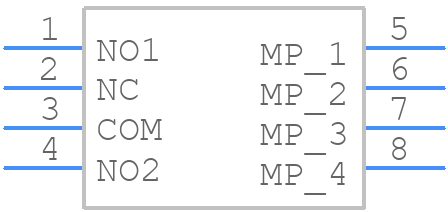

PCM13SMTR - LITTELFUSE - PCB symbol

PCB Footprints

PCM13SMTR - LITTELFUSE PCB footprint - Other - Other - PCM13SMTR-1

3D Models

PCM13SMTR - LITTELFUSE - 3D model - Other - PCM13SMTR-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCM13SMTR
Part Number PCM13SMTR
Manufacturer LITTELFUSE
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - PCM13SMTR-1
Released Date Mar 30, 2023
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

PCM13SMTR Details

Manufacturer Part Number:
PCM13SMTR
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
Switch Type:
SLIDE SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PCM13SMTR Overview

Use the download button to access the PCM13SMTR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PCM13, or try a keyword search, such as Slide Switches
