The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (VA and VB). This ensures that the internal voltage regulators are powered up correctly.
To optimize performance, ensure that the analog power supplies (VA and VB) are well-filtered and decoupled, and that the digital power supply (VDD) is noise-free. Additionally, use a low-noise, low-impedance clock source, and ensure that the analog input signals are properly terminated and filtered.
The PCM1606E/2K can support clock frequencies up to 50 MHz, but the maximum frequency may vary depending on the specific application and system requirements.
The PCM1606E/2K can be configured for master or slave mode operation by setting the appropriate bits in the control register. In master mode, the device generates the clock signal, while in slave mode, it receives the clock signal from an external source.
To minimize noise and interference, it is recommended to keep the analog and digital signal paths separate, and to use a multi-layer PCB with a solid ground plane. Additionally, ensure that the power supply lines are well-decoupled and filtered.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1606E/2K Overview

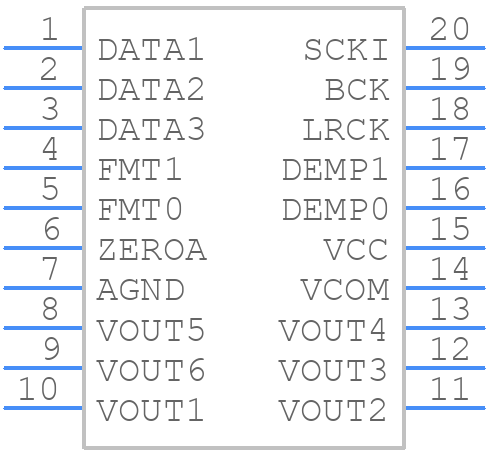

Use the download button to access the PCM1606E/2K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM16,
or try a keyword search, such as Digital to Analog Converters
