The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital supplies (VDD and VCCO). This ensures that the internal voltage regulators are powered up correctly.
To optimize THD+N performance, ensure that the analog and digital grounds are separated, use a low-noise power supply, and minimize the distance between the PCM1702P-KG4 and the analog signal sources. Additionally, use a high-quality clock source and ensure that the clock frequency is accurate and stable.
The maximum clock frequency that the PCM1702P-KG4 can support is 256 fs (where fs is the sampling frequency). For example, at a sampling frequency of 44.1 kHz, the maximum clock frequency would be 11.2896 MHz.
To configure the PCM1702P-KG4 for master clock mode, connect the MCLK pin to a clock source, and set the M/S pin low. The PCM1702P-KG4 will then generate the internal clock signals from the master clock input.
The recommended layout and routing for the PCM1702P-KG4 involves separating the analog and digital signal paths, using a star-ground configuration, and minimizing the length of the clock signal traces. Additionally, use a solid ground plane and avoid routing digital signals under the analog signal paths.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1702P-KG4 Overview

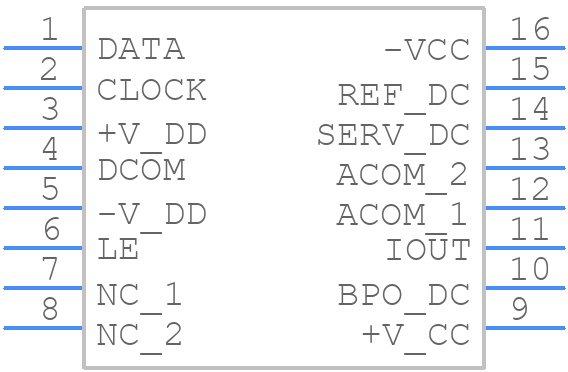

Use the download button to access the PCM1702P-KG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
