PCM1702U-KE6 - Texas Instruments

Description: Audio D/A Converter ICs BiCMOS Adv Sign Magnitude 20-Bit DAC

Download PCM1702U-KE6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

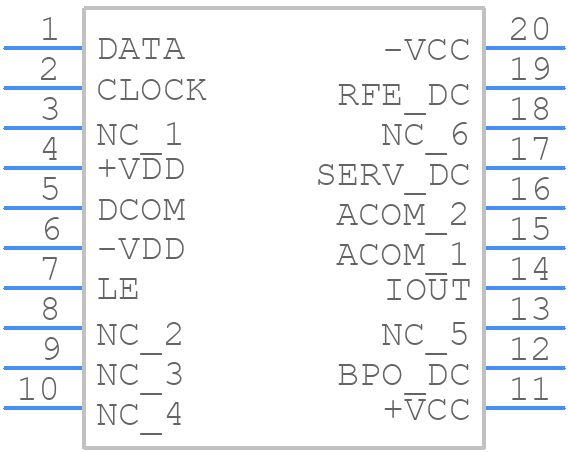

PCM1702U-KE6 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1702U-KE6 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G20)
click to zoom
3D Models
PCM1702U-KE6 - Texas Instruments - 3D model - Small Outline Packages - NS (R-PDSO-G20)
click to zoom

PCM1702U-KE6 Details

  • Manufacturer Part Number:

    PCM1702U-KE6

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e6

  • Length:

    12.6 mm

  • Moisture Sensitivity Level:

    2

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    0.2 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1702U-KE6 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital signals. This ensures proper internal biasing and prevents damage to the device.
  • The analog output filter should be optimized for a cutoff frequency of around 100 kHz to 200 kHz to remove high-frequency noise and ensure a smooth output signal. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
  • The maximum allowed input voltage for the analog input pins is VREF + 0.5V, which is typically around 5.5V for a 5V VREF. Exceeding this voltage can cause damage to the device.
  • Clock jitter and skew can be minimized by using a high-quality clock source, such as a crystal oscillator, and ensuring that the clock signal is properly terminated and routed. Additionally, the PCM1702U-KE6 has a built-in clock jitter attenuator that can help reduce the effects of clock jitter.
  • The recommended layout and routing for the PCM1702U-KE6 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, the VREF and VCC pins should be decoupled with high-quality capacitors to reduce noise and ensure stable operation.
