PCM1704U-J/2K - Texas Instruments

Description: Audio D/A Converter ICs 24-Bit 96kHz BiCMOS Sign-Mgntd DAC

Download PCM1704U-J/2K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

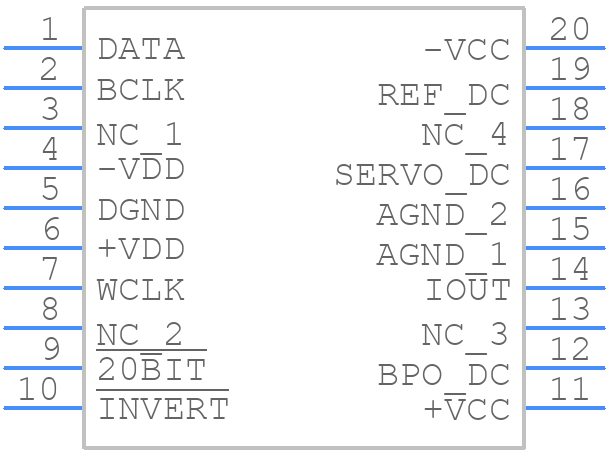

PCM1704U-J/2K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1704U-J/2K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G20)
click to zoom
3D Models
PCM1704U-J/2K - Texas Instruments - 3D model - Small Outline Packages - NS (R-PDSO-G20)
click to zoom

PCM1704U-J/2K Details

  • Manufacturer Part Number:

    PCM1704U-J/2K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.6 mm

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    0.2 µs

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.3 mm

PCM1704U-J/2K Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This sequence helps prevent latch-up and ensures proper device operation.
  • To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and place the device close to the analog signal sources. Also, use short, direct traces for the analog signals and avoid crossing digital signals over analog signals.
  • The recommended clock frequency for the PCM1704U-J/2K is between 256 fs and 512 fs, where fs is the sampling frequency. This frequency range ensures proper device operation and minimizes jitter.
  • The PCM1704U-J/2K outputs 24-bit data in a 2's complement format. The data should be latched on the rising edge of the clock signal, and the MSB (most significant bit) should be aligned with the clock signal.
  • The recommended operating temperature range for the PCM1704U-J/2K is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1704U-J/2K Overview

Use the download button to access the PCM1704U-J/2K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17, or try a keyword search, such as Digital to Analog Converters
