PCM1704U-J - Texas Instruments

Description: PCM1704U-J, Audio DAC Dual 24bit-, 96ksps ±3%FSR Serial, 20-Pin SOP

Download PCM1704U-J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

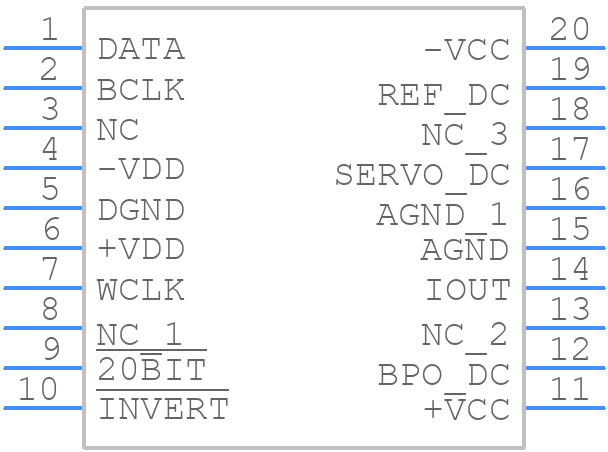

PCM1704U-J - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1704U-J - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G20)
click to zoom
3D Models
PCM1704U-J - Texas Instruments - 3D model - Small Outline Packages - NS (R-PDSO-G20)
click to zoom

PCM1704U-J Details

  • Manufacturer Part Number:

    PCM1704U-J

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e6

  • Length:

    12.6 mm

  • Moisture Sensitivity Level:

    2

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    0.2 µs

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1704U-J Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This sequence helps prevent latch-up and ensures proper device operation.
  • To optimize the analog input filter design, use a low-pass filter with a cutoff frequency of around 10 kHz to 20 kHz to remove high-frequency noise and aliasing. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
  • The recommended clock frequency is 256 fs (where fs is the sampling frequency), and the clock jitter tolerance is ±50 ppm. It's essential to use a high-quality clock source to ensure accurate conversion and minimize jitter-induced errors.
  • The PCM1704U-J outputs data in a 24-bit, MSB-first, two's complement format. Ensure that the receiving device is configured to accept this format and alignment to avoid data corruption or misinterpretation.
  • The PCM1704U-J has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias, heat sinks, or other thermal management techniques to maintain a safe operating temperature.
