PCM1725U/2K - Texas Instruments

Description: Audio D/A Converter ICs Stereo DAC 16 Bits 96kHz Sampling

Download PCM1725U/2K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

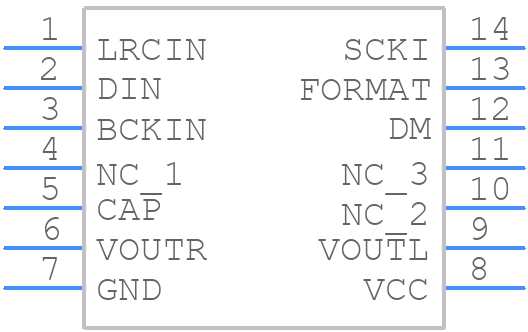

PCM1725U/2K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1725U/2K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
PCM1725U/2K - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

PCM1725U/2K Details

  • Manufacturer Part Number:

    PCM1725U/2K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Output Voltage-Max:

    3.41 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.096 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PCM1725U/2K Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device.
  • To minimize noise and EMI, it is recommended to keep the analog and digital signal traces separate, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, use a shielded cable for the analog input signals and keep the digital signal traces away from the analog input pins.
  • The maximum allowed clock jitter for the PCM1725U/2K is 100 ps peak-to-peak. Exceeding this limit can result in increased distortion and decreased dynamic range.
  • Yes, the PCM1725U/2K can be used with a separate analog and digital power supply. However, it is essential to ensure that the analog power supply is well-regulated and has a low noise floor to avoid affecting the device's performance.
  • To configure the PCM1725U/2K for master clock mode, connect the MCLK pin to an external clock source, and set the M/S pin to a logic high. This will enable the internal clock generator, and the device will generate the necessary clock signals for the DAC and other internal circuits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1725U/2K Overview

Use the download button to access the PCM1725U/2K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
