PCM1770PW - Texas Instruments

Description: PCM1770PW, Audio DAC Dual 24 bit-, 48ksps ±8%FSR Serial (SPI), 16-Pin TSSOP

Download PCM1770PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

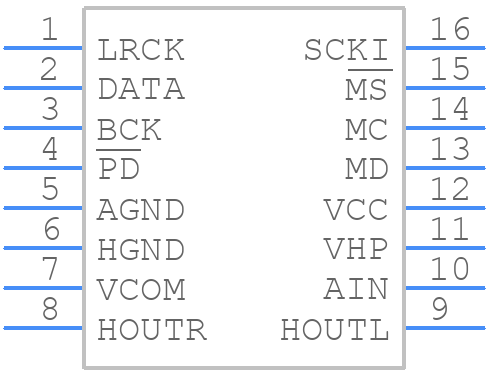

PCM1770PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1770PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
PCM1770PW - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

PCM1770PW Details

  • Manufacturer Part Number:

    PCM1770PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.32 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1770PW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM1770PW for master clock mode, set the MCKI pin to the desired clock frequency, and set the MCKO pin to output the clock signal. Then, set the BCK pin to output the bit clock signal, and set the LRCK pin to output the frame clock signal.
  • The maximum allowed capacitance on the AVCC and DVCC pins is 10uF. Exceeding this value may affect the stability of the internal voltage regulators.
  • The thermal shutdown feature is enabled by default. If the die temperature exceeds 150°C, the device will shut down. To handle this, ensure good thermal design and heat sinking, and consider using a thermal monitoring circuit to detect and respond to thermal shutdown events.
  • Keep analog and digital signals separate, use a solid ground plane, and minimize trace lengths and widths to reduce noise and crosstalk. Also, ensure that the power supply pins are decoupled with capacitors and that the device is placed near the analog and digital power supply pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1770PW Overview

Use the download button to access the PCM1770PW schematic symbol, PCB footprint, and 3D model.
