The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and place the analog components (such as the audio capacitors) close to the PCM1771PW. Also, ensure that the digital signals are routed away from the analog signals to minimize noise coupling.
The maximum allowed clock jitter for the PCM1771PW is 50 ps RMS. Exceeding this limit can result in increased jitter in the audio output, which can affect the overall audio quality.
Yes, the PCM1771PW can be used in a multi-channel audio application. However, each channel requires a separate PCM1771PW device, and the devices must be synchronized using a common clock signal to ensure proper operation.
To troubleshoot audio quality issues, check the power supply voltage, clock signal quality, and analog output loading. Also, ensure that the digital inputs are properly formatted and that the device is configured correctly. If issues persist, consult the Texas Instruments support resources or contact a technical support engineer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1771PW Overview

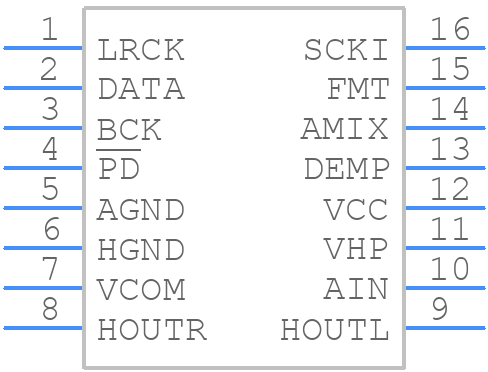

Use the download button to access the PCM1771PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
