PCM1772PWR - Texas Instruments

Description: Audio D/A Converter ICs Lo-Vlt & Lo-Pwr Ster DAC w/Lineout Amp

Download PCM1772PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

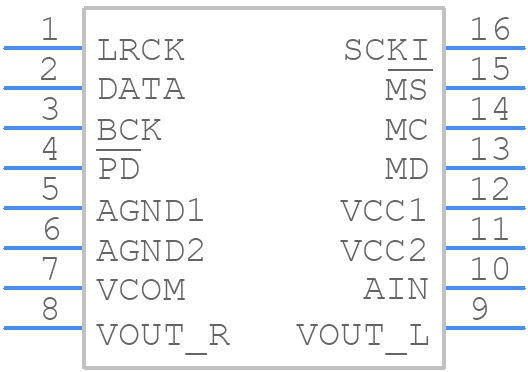

Symbol
PCM1772PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1772PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A HEIGHT=1.2
click to zoom
3D Models
PCM1772PWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A HEIGHT=1.2
click to zoom

PCM1772PWR Details

  • Manufacturer Part Number:

    PCM1772PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.772 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1772PWR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital power supply (VDDIO). This ensures that the internal voltage regulators are powered up correctly.
  • To configure the PCM1772PWR for master clock mode, set the MCLK pin to the desired clock frequency (typically 256x or 512x the sample rate) and set the BCK pin to the desired bit clock frequency. The device will then generate the LRCK signal internally.
  • The maximum allowed capacitance on the VCC and VDD pins is 10uF. Exceeding this value may cause power-up issues or affect the device's performance.
  • To optimize the PCB layout for the PCM1772PWR, keep the analog and digital power supply traces separate, use a solid ground plane, and place the device close to the analog power supply decoupling capacitors. Also, ensure that the clock signals are routed away from the analog signals to minimize noise coupling.
  • The recommended operating temperature range for the PCM1772PWR is -40°C to 85°C. Operating the device outside this range may affect its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1772PWR Overview

Use the download button to access the PCM1772PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
