PCM1780DBQ - Texas Instruments

Description: PCM1780DBQ, Audio DAC Octal 24 bit-, 192ksps Serial, 16-Pin SSOP

Download PCM1780DBQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

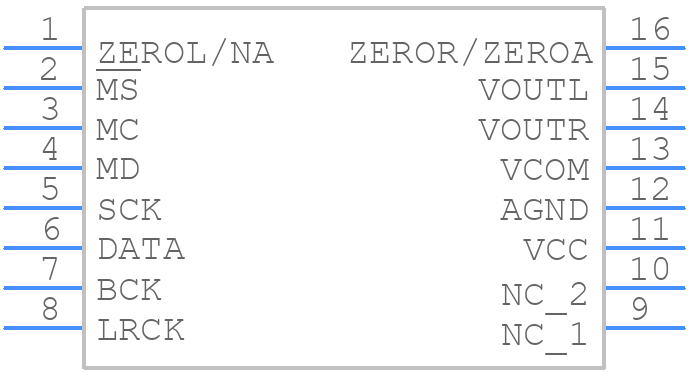

PCM1780DBQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1780DBQ - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A-SSOP
click to zoom
3D Models
PCM1780DBQ - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A-SSOP
click to zoom

PCM1780DBQ Details

  • Manufacturer Part Number:

    PCM1780DBQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    4.29 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PCM1780DBQ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog power supplies (VAA and VDA). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize the analog output stage, ensure that the output filter components (Rf and Cf) are properly selected to match the load impedance and desired frequency response. Additionally, use a low-ESR capacitor for the output coupling capacitor (Cc) to minimize distortion.
  • The recommended clocking scheme is to use a single clock source for both the digital and analog sections. This ensures that the digital and analog circuits are synchronized, reducing jitter and improving overall performance.
  • The PCM1780DBQ outputs data in a 24-bit, MSB-first, left-justified format. Ensure that the receiving device is configured to accept this format to avoid data corruption or misinterpretation.
  • The internal voltage regulators (VREG1 and VREG2) provide regulated power supplies for the analog and digital sections, respectively. These regulators can be used to power external circuitry, but ensure that the total current drawn does not exceed the recommended maximum current rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1780DBQ Overview

Use the download button to access the PCM1780DBQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17, or try a keyword search, such as Digital to Analog Converters
