PCM1791ADB - Texas Instruments

Description: PCM1791ADB, Audio DAC Dual 24 bit-, 192ksps 8%FSR Serial (SPI), 28-Pin SSOP

Download PCM1791ADB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

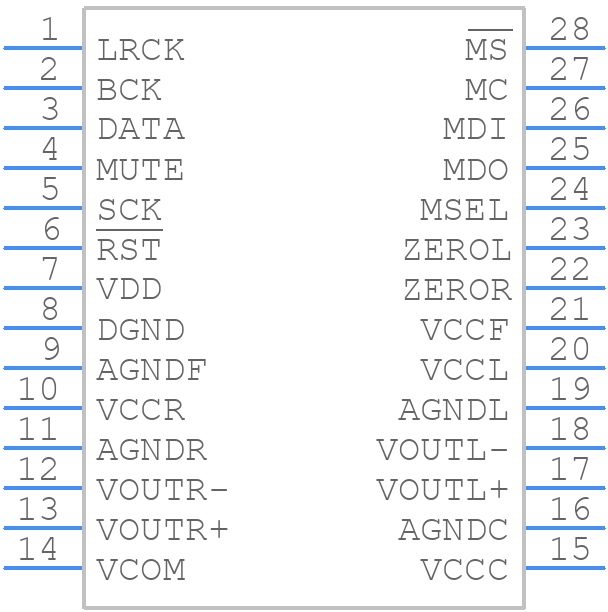

Symbol
PCM1791ADB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1791ADB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
PCM1791ADB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

PCM1791ADB Details

  • Manufacturer Part Number:

    PCM1791ADB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    3.2 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1791ADB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog supply (VCCA) first, followed by the digital supply (VCCD), and then the clock signal. This ensures proper initialization of the device.
  • To minimize noise and jitter, it is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the clock signal traces short and away from the analog signal traces. Additionally, use a low-ESR capacitor for the analog supply decoupling.
  • The maximum clock frequency that can be used with the PCM1791ADB is 256 fs (384 fs for the PCM1791ADBR), but it is recommended to use a clock frequency of 128 fs or lower to ensure optimal performance.
  • To configure the PCM1791ADB for Master Clock Mode, set the MCKO pin to a logic high, and connect the clock signal to the MCKI pin. The device will then generate the clock signal for the digital audio interface.
  • The recommended termination for the digital audio interface is a 100-ohm differential termination for the I2S and SPDIF interfaces, and a 50-ohm single-ended termination for the AES3 interface.
