PCM1792ADBG4 - Texas Instruments

Description: Audio D/A Converter ICs 24B 192kHz Sampling Adv Seg Aud St DAC

Download PCM1792ADBG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

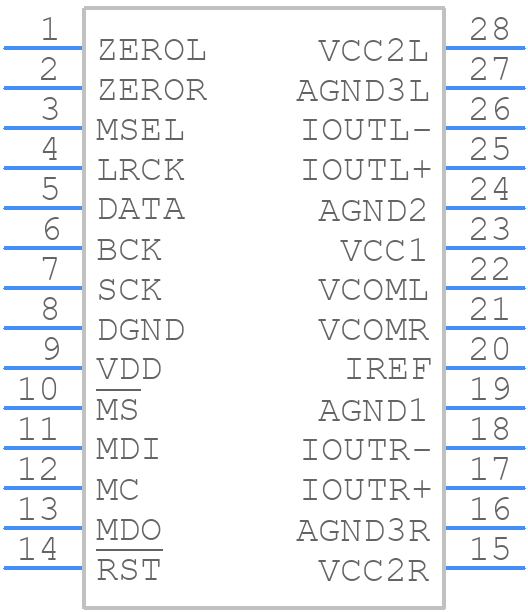

PCM1792ADBG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1792ADBG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A_2021-1
click to zoom
3D Models
PCM1792ADBG4 - Texas Instruments - 3D model - Small Outline Packages - DB0028A_2021-1
click to zoom

PCM1792ADBG4 Details

  • Manufacturer Part Number:

    PCM1792ADBG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1792ADBG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog supply (VCCA) first, followed by the digital supply (VCCD), and then the clock signal. This ensures proper initialization of the device.
  • To minimize noise and jitter, it is recommended to keep the analog and digital signal traces separate, use a solid ground plane, and place the device close to the analog power supply. Additionally, use a low-jitter clock source and ensure that the clock signal is properly terminated.
  • The maximum allowed clock jitter for the PCM1792ADBG4 is 100 ps RMS. Exceeding this limit can result in decreased performance and increased distortion.
  • To configure the PCM1792ADBG4 for master clock mode, set the MCLK pin to the desired clock frequency, and set the BCK pin to the desired bit clock frequency. The device will then generate the LRCK signal internally.
  • The recommended termination for the digital output pins of the PCM1792ADBG4 is a 50-ohm resistor to ground, to ensure proper signal integrity and minimize reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM1792ADBG4 Overview

Use the download button to access the PCM1792ADBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM17, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
