PCM2702E/2K - Texas Instruments

Description: Audio D/A Converter ICs 16-Bit Stereo DAC w/USB Ifc

Download PCM2702E/2K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

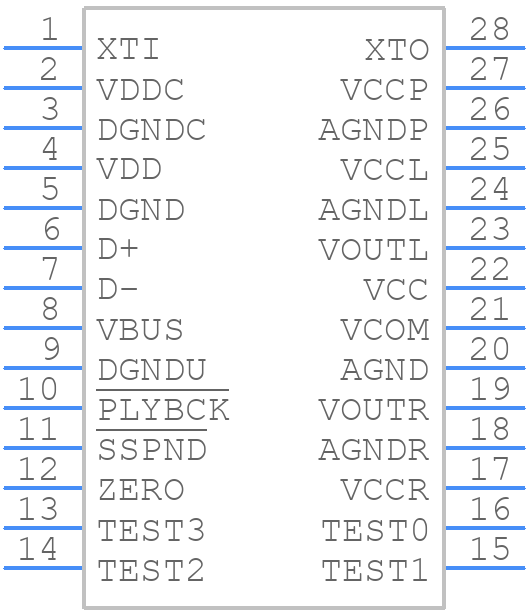

PCM2702E/2K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2702E/2K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2702E/2K - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2702E/2K Details

  • Manufacturer Part Number:

    PCM2702E/2K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    GREEN, PLASTIC, SSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    3.41 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2702E/2K Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators are properly initialized.
  • To configure the PCM2702E/2K for master mode operation, set the MCLK pin as the clock source, and connect the BCLK and WCLK pins to the external clock source. Also, set the MS bit in the control register to '1' to enable master mode.
  • The maximum allowed capacitance on the VCC and VDD pins is 10uF. Exceeding this value may cause power-up issues or affect the device's performance.
  • During power-down, the digital output pins (e.g., I2S, SPDIF) should be tri-stated to prevent back-powering the device. This can be achieved by setting the output enable pins (e.g., OEN) to '0' or by using an external buffer with a tri-state output.
  • Keep analog and digital signals separate, and use a star-configuration for the analog signals to minimize noise coupling. Also, use a solid ground plane and avoid routing digital signals under the analog signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM2702E/2K Overview

Use the download button to access the PCM2702E/2K schematic symbol, PCB footprint, and 3D model.
